Product Details
Product Description
Product Description
【Product Description】

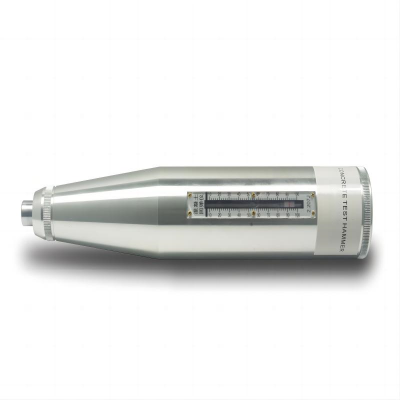

The concrete test hammer is a mechanical device used for performing rapid, non-destructive quality testing on materials in accordance with the customer’s specifications. In most cases, however, the material involved is concrete.
The device is to be used exclusively on the surfaces to be tested and on the testing anvil.
【product feature】
Center guide adopts imported materials, high accuracy, resistance to wear and tear.
Shell is made of super hard aluminum, avoid onsite damage equipment, prolong service life.
Pointer block the external type spring coil structure, convenient for friction adjustment, and can guarantee pointer shaft and pointer slider friction force uniform, to ensure the accuracy of the instrument.
【Product Parameter】
| Standard impact energy | 0.735J |
| Strike length of flip hammer | 75±0.3mm |
| Friction of pointer slider | 0.5±0.1N |
| Work length of flip tensioned spring | 61.5±0.3mm |
| Location of flip hammer's hook release | 100 at the scale mark |
| Sphere semidiameter at the end of the flip rod | 25±1mm |
| The rebound values calibrated on steel anvil | 74±2 |
| Dimension | 270x55x55mm |
| Weight | 1040 g |
【Product Accessories】
| Standard Accessories | Host(1pc) |
| Carrying Case(1pc) |
Operation Manual(1pc)
|
>>
