288 Core Communication Gyfts Underground Cst Armored GYTS Fiber Optic Cable

Product Description

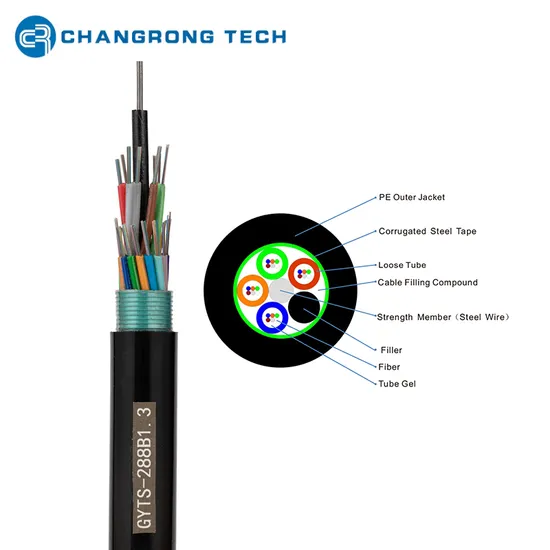

The 2-288 fibers are positioned in loose tube made of PBT and filled with tube jelly;
Steel Wire (or FRP) as central strength member(CSM);
Cable Filling Compound to prevent water penetration;
Corrugated Steel Tape armored to reinforce;
PE or LSZH is extruded as sheath;
Application: Non Self-supporting Aerial installation; Underground Duct installation;
Structure can be customized for different spans.
Features:
• Good mechanical and thermal performance• Hydrolysis resistant loose tube• Tube filling compound ensures critical protection of fiber• Specially designed stranded structure eliminating contraction of tubes• Rugged, durable PE jacket protection against UV radiation, fungus etc.• Crush resistance and flexibility• Water-blocking measures :- Loose tube gel-filled - 100% cable filling compound- Corrugated steel tape(CST) enhancing moisture-proof
Product Parameters

Fiber Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units (Tubes or Filler)	5	6	5	6	8	10	12	18	24
Cable Diameter (mm)	9.2	9.6	9.7	10.2	11.5	12.8	14.0	14.3	16.2
Cable Weight (Kg/km)	87	102	98	118	143	170	197	204	255
Fiber Type	G652D G655 G657 50/125 62.5/125
Tensile Strength (N)	Long/Short Term: 600/1500
Crush Resistance (N/100mm)	Long/Short Term: 300/1000
Bending Radius (mm)	Static/Dynamic: 10D/20D
Temperature (ºC)	Storage /Operation: -40ºC~70ºC
Note: "D" means cable diameter

Certifications
ISO9001, ISO14001, ISO45001 Certified Factory.
Own Lab certified by CNAS.
Company Profile
50 Sets of Optical Cable Testing Equipment: Packaging & Shipping
Drum Packing:
Shipping:
