US$0.08-0.15
|
1 Watt
(MOQ)
|
Basic Info.
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Solar Cell
Mono 182X91mm Half Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
Frame Color
Silvery or Black
Transport Package
by Carton & Pallet
Specification
2274*1134*35mm
Production Capacity
500000 Piece/ Years

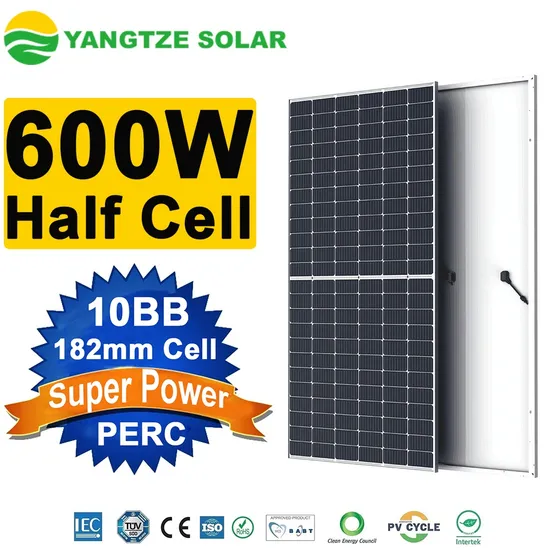

Product Description
SPECIFICATIONS
| Module type | YS550M-72 | YS560M-72 | YS570M-72 | YS580M-72 | YS590M-72 | YS600M-72 |
| Maximum Power (Pmax) | 550W | 560W | 570W | 580W | 590W | 600W |
| Maximum Power Voltage (Vmp) | 40.90V | 41.10V | 41.30V | 41.50V | 41.90V | 42.10V |
| Maximum Power Current (Imp) | 13.45A | 13.63A | 13.27A | 13.98A | 14.08A | 14.25A |
| Open-circuit Voltage (Voc) | 49.62V | 49.72V | 49.82V | 49.91V | 49.95V | 49.99V |
| Short-circuit Current (Isc) | 14.03A | 14.33A | 14.62A | 14.81A | 14.92A | 14.97A |
| Module Efficiency STC | 21.33% | 21.72% | 22.10% | 22.49% | 22.87% | 23.27% |
| Operating Temperature | -40~+85ºC |
| Maximum System Voltage | 1000VDC/1500VDC (IEC) |
| Maximum series fuse rating | 25A |
| Power tolerance | 0~+3% |
| Temperature coefficients of Pmax | -0.35%/ºC
|
| Temperature coefficients of Voc | -0.28%/ºC
|
| Temperature coefficients of Isc | 0.048%/ºC |
| Nominal operating cell temperature (NOCT) | 45±2ºC |
♦ Founded in 1994 , 300MW solar panel production capacity ,solar panel power range 3watt to 800watt for both polycrystalline and monocrystalline solar panel
♦ 10 years total workmanship and materials warranty , 10 years for at least 90% and 25 years for 80% linear power output warranty
♦ 100% EL test before package and shipping
♦ Two factories , solar panel factory , battery factory
♦ Cooperated with world famous big companies like Trina Solar , Suntech Solar , Yingli Solar , HUAWEI
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
>>
