K2 PRO Audio Double 12 Inch Line Array Speaker Professional Speaker Outdoor PA Speaker Line Array System

US$800.00-1,250.00 1 Piece (MOQ)

Basic Info.

Model NO.
KS28 K2
Activity
Passive
Operation Mode
Wire / Remote Control
Speaker System
Optional Combination
Speaker Material
Wood
Application
Commercial, Home
Certification
CE, RoHS
Monitor
VFD Screen
THD
<0.005%
Lf Driver
2 X 12 Inch
Hf Driver
4 X 6.5 Inch
Mf Driver
2 X 3 Inch
K2 Dual 12 Inch 3 Way
Line Array Speaker
Transport Package
Double Durable Cartons or Flight Cases
Specification
CE
Trademark
Sanway Audio
Origin
Guangdong China
HS Code
8518220000
Production Capacity
500 PCS Per Month

Packaging & Delivery

Package Size
44.00cm * 41.00cm * 141.00cm
Package Gross Weight
63.000kg

Product Description

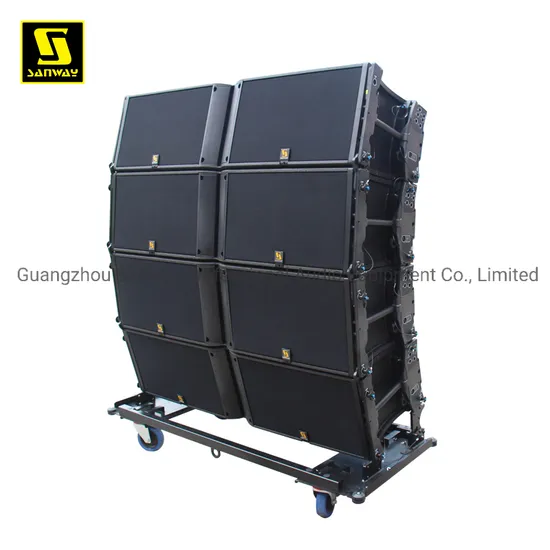

K2 Dual 12 inch 3 Way Line Array Speaker
Overview:
1>. K2 line array is a dual 12 inch 3 way tri-amped large-scale system with variable curvature and adjustable horizontal directivity.
2>. The K2 consists of two 12" neodymium woofer and four 6.5" neodymium MF drivers, and two 3" neodymium diaphragm compression drivers coupled to individual waveguides and adjustable directivity fins.

Features:
1>. K2 Dual 12 Inch 3 Way Audio Line Array Speaker;
2>. 2 x 12'' neodymium LF drivers; 4 x 6.5'' neodymium MF drivers; 2 x 3'' neodymium HF drivers;
3>. Adjustable horizontal directivity system;
4>. Compact birch plywood enclosure;
5>. Weather resistant coating.
Specification:
Usable bandwidth (-10dB)
35Hz - 20kHz
Maximum SPL
147 dB
Coverage angle (-6 dB)
Horizontal: 110°/70° symmetric; 90° asymmetric (35°/55° or 55°/35°)
Vertical: depends on the number of elements and array curvature
Transducers
LF: 2 x 12'', weather-resistant, bass-reflex
MF: 4 x 6.5'', weather-resistant, bass reflex
HF: 2 x 3'', diaphragm compression driver
Nominal impedance
LF: 2 x 8 ohms; MF: 8 ohms; HF: 16 ohms
RMS power handling
LF: 2 x 450W; MF: 320W; HF: 160 W
Connectors
IN: 1 x 8-pins PA-COM; LINK: 1 x 8-pins PA-COM
Dimension
1338 x 354/286 x 400 mm; 52.7 x 14/11.3 x 15.8 in
Weight (net)
56kg
Enclosure
First grade birch plywood
Finish
Dark Grey brow/ black
