Mining Ultra-Fine Stone, Cement Clinker, Limestone, Raymond Grinding Plant

Product Description

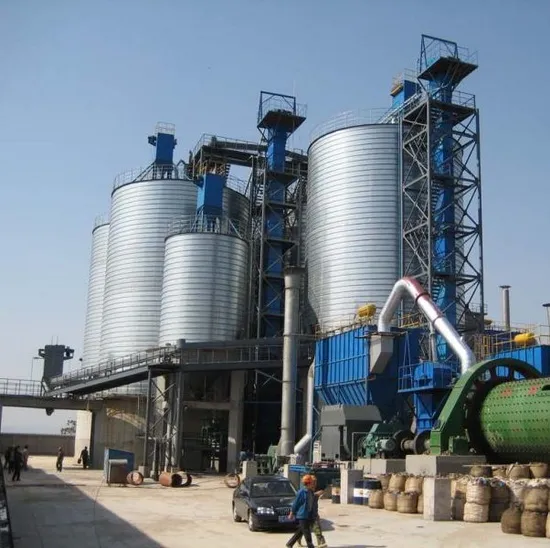

Complete Cement Clinker Production Line/Cement Grinding Station plant
The cement clinker grinding plant or cement grinding station acts as an individual production line in the last period of the cement production process. In the finished product period, the cement clinker is ground by adding moderate mixing materials and then forms the finished cement

How to Choose the Proper Grinding System? The two-stage grinding system composed of a ball mill and a pre-grinding roller press or vertical mill and the vertical roller mill final grinding system are the most mature and widely used grinding systems at present, and they are also the systems we most recommend to customers. Of course, in the actual project, we will design the most appropriate grinding scheme for customers according to their requirements.
Cement BALL Grinding Equipment The core equipment in a grinding plant is the cement mill. According to different grinding systems, the often-used cement mills include ball mill, roller press, and vertical roller mill.

Cement Vertical Roller Mill Grinding Equipment The vertical roller mill final grinding system features a simplified process, low power consumption, and low wear rate, should be considered as the first choice;

No	Main equipment	Closed circuit production
		15T/H	25T/H	35T/H	50T/H	70T/H
1	Cement Ball Mill	Φ2.2×6.5m Power: 380kw	Φ2.4×11m Power: 380kw	Φ3×11m Power: 380kw	Φ3.2×13m Power: 380kw	Φ3.5×13m Power: 380kw
2	Belt conveyor	B500	B650	B650	B800	B1000
3	Elevator	TH315	TH400	NE100	NE150	NE200
4	Powder separator	Osepa N250	Osepa N500	Osepa N750	Osepa N1000	Osepa N2000
5	Dust collector 1	PPC32-4	PPC32-6	PPC64-5	PPC64-6	PPC64-7
	Dust collector 2	PPC64-6	PPC96-7	PPC96-2×5	PPC96-2×6	PPC96-2×10
6	Elevator to cement silo	TH250	TH315	NE50	NE100	NE100
7	Package machine	Three -nozzle	Four -nozzle	Rotary 6 -nozzle	Rotary 8 -nozzle	Rotary 8 -nozzle

Our Advantages

Main characteristics of Cement Clinker Grinding Plant:
1. The batching system have been adopt automatic quantitative feeding and measuring device, which have increase the material batching accuracy and also stablilizing the production's quality.
2. Adopting tube mill or vertical roller mill to producing qualify cement according to the raw material's condition of clients.
3. Producing system have adopt closed circuit to reduce the energy consumption of cement grinding. The single line scale can be from 50tpd to 2000tpd, which have been covered the cement factory's different manufacture demand.
4. Adoption of High efficiency air classifier and pulse type bag filter have created the circumstance for energy saving and energy consumption reduction.
5. The mill and air classifier have adopt 3D computer design, which have reasonable structure and reliable operation.
6. The grinding system have adopt best ventilation air volume design, which will reduce the installed capacity.
7. Plant have high automation level, the operating process will adopt DCS central control system for adjustment, control and alarm in master control room, then the whole plant have less operator and also increase the working efficiency.
8.Compared to other production process, our cement grinding unit canincrease capacity by 30%, and the energy consumption can be reduced by 15%,apply for different requirement of fineness,greatly improve the grinding efficiency.
Customer Case
Company Profile
Henan Turui Machinery Co., Ltd, is a machinery manufacturing enterprise integrating design, research and
development production, sales and installation. The products are machines which mainly used for mines,
cement and building materials. The company covers an area of 80,000 square meters, building area of 20,000
spare meters. The workshop has more than 40 sets of boring-milling machine, gear hobbling machine, vertical
lathe, travelling crane and etc. it formed an independent technology process production line. Now the company
has workers more than one hundred, includes 8professional engineers. 75% of the total workers have participated
the professional technical training.
The products have passed the international quality system certifications of 1S0900, CE and GHOST. With the
distinctive design,professional team, strict management and top-quality equipment, we try to produce the high-quality
products to meet the demandsof market. The products have been sold to twenty provinces and exported to more
than one hundred counties and areas.
The company takes very seriously to technical exchanges and cooperation domestic and overseas.
Now it has established good technical R & D cooperation relations with many domestic key scientific research
institutions and the United States, Japan, and Taiwan China, and established advanced domestic and foreign
machining processing lines. It fully guarantees the technical
advantages of the company's various products in the industry. Turui company adheres to the tenet of "pragmatic
innovation,honesty, superior quality, excellent service", with the ultimate goal of serving customers, satisfying
customers, and designing the most suitable production plan for customers adhering to "elaborate design,
excellent production, sincere service development concept, to get win-win cooperation and make progress
together with customers.
The company mainly produces complete sets of equipment for mines, cement, and building materials.
Its main products are: jaw crusher, impact crusher, cone crush
Customer visits
Packaging & Shipping

FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had
already build many mining projects in China & Overseas.

---
