Precision CNC Milling Machine with Extensive Table Area and Travel

Product Description

Product Description

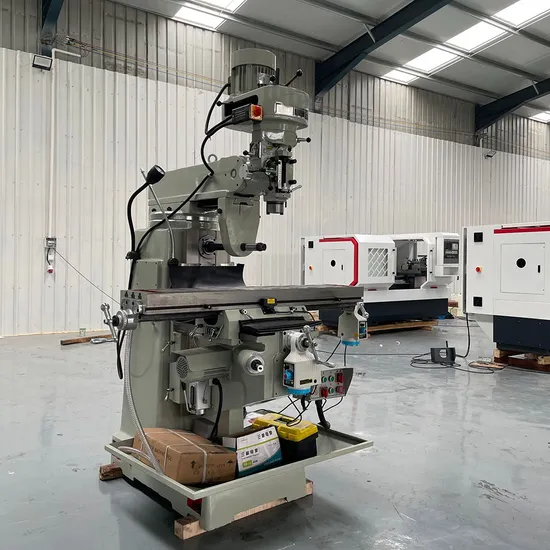

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. The Turret Milling Machine boasts an innovative design with a robust construction and exceptional machining capabilities, such as drilling, boring, and milling of flat surfaces, inclined planes, and slots. This versatile machine can also handle advanced tasks like milling helical slots, curved surfaces, racks, gears, and splines with the appropriate attachments.2. The Y-axis features a rectangular guideway offering excellent rigidity and stability. The guideway on the Radial Milling Machine saddle is lined with TF wearable material, enhancing durability and performance.3. Equipped with a high-speed milling head sourced from Taiwan, ensuring precision and efficiency in all milling operations.4. The slideway and table surface are specially hardened to increase durability and precision.5. The T-slot is meticulously machined using specialized tools to prevent extension beyond the table edge, thereby enhancing rigidity and contributing to the machine's sleek appearance. 6. The slideway has been expertly hand-scraped to precision, ensuring smooth movement and maintaining high accuracy.7. The XYZ axis screws, crafted in Taiwan, guarantee superior reliability and longevity.8. The XY screw features a dual-nut system that facilitates easy adjustment of the space between the screw and nut, enhancing precision and control.9. The XY screw bracket is designed as a single base unit, providing exceptional precision and rigidity.10. The electrical system has been meticulously designed in compliance with CE standards, ensuring safety and reliability.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. Crafted from high-grade Meehanite castings, this heavy-duty model ensures superior strength and stability. 2. The Y-axis is supported by solid rectangular slideways, offering outstanding support and precision. 3. All axes feature adjustable dovetail slideways, facilitating precision tuning and smooth operation. 4. Equipped with right-left handed rotation to enhance versatility during operation. 5. Thanks to the taper roller bearings, the spindle sleeve boasts high concentricity precision, measuring less than 0.01mm, enhancing accuracy. 5. Automatic spindle sleeve feed for streamlined and efficient operation. 6. The main switch offers motor protection and includes a right/left handed rotation switch with an emergency-stop button for safety and convenience. 7. This machine offers a cost-effective solution with exceptional value retention over time.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd., strategically situated in Zhengzhou, the heart of China, stands as a beacon of innovation and reliability in the machinery industry. With extensive experience in exporting high-quality machinery, we don't just offer our clients stable products but also outstanding service, ensuring satisfaction and trust.Our comprehensive range of machine tools includes Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and a variety of machine tool accessories, catering to every industrial need. Our dedicated team of engineers, boasting years of professional training and invaluable experience, is committed to excellence, providing expert guidance and ensuring the highest quality standards. Our engineers are not only involved in inspecting goods before shipment but diligently monitor all stages of the production process, offering unparalleled support and assurance to our clients. Our unwavering commitment to quality and customer satisfaction has earned us a distinguished reputation in the international market, making us a trusted partner for clients worldwide. Experience the Henan Rowdai difference - where innovation meets reliability, and customer needs drive our passion for perfection. Our mission is to exceed customer expectations through innovative solutions and top-notch service, ensuring enduring relationships and mutual success. As a leading player in the machinery industry, we pride ourselves on our ability to adapt to market trends and technological advancements, maintaining our position at the forefront of the industry. Join us on our journey of growth and excellence, where your success is our ultimate goal.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
