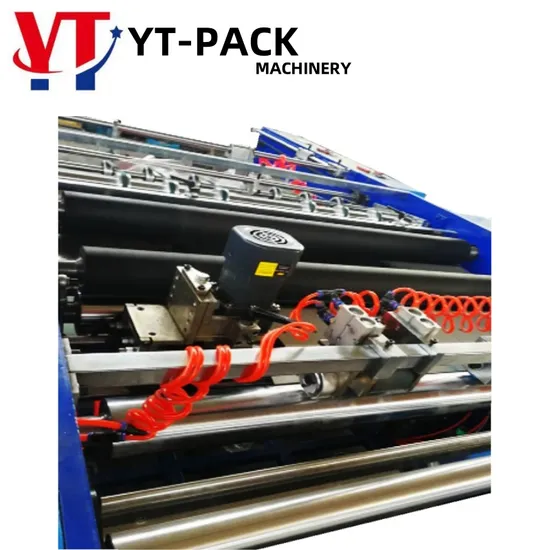

YT Fully Automatic Pre Coated Corrugated Cardboard Laminating Machine

Product Description

PERFORMANCE CHARACTERISTICS
1. The heating optical axis adopts mirror chrome plating process, with a diameter of 320mm, good film coating quality, and long service life.
2. The composite rubber shaft adopts a high-temperature resistant rubber shaft, driven by a synchronous motor, which is stable and reliable during use,
3. This machine does not require glue, saves the gluing process, and is economical and environmentally friendly.
4.Adopting electromagnetic heating without the need for drying, saving electricity and space.
5. The film delivery part adopts an inflatable shaft for film delivery, which can quickly replace the film, accurately locate it, and adjust the tension of the film release freely.
6. The temperature control system adopts an intelligent temperature control device. After setting the specified temperature, the machine automatically heats up. When the set temperature is reached, the temperature control system autoratically powers off, saving electricity.
7. The paper feeding system adopts a servo motor for automatic paper feeding, equipped with a high-pressure suction fan, and corrugated cardboard can be smoothly fed.
8. The paper feeding mechanism is a linear optical shaft gear shaft structure, which is smooth and easy to operate. The paper is fed by the lower suction belt, and the fan is a special high-pressure fan for printing machine
9. The active pulling method is adopted for breaking, and the speed can be fast or slow, overcoming the shortcomings of the old pulling method such as easy slipping and continuous pulling.

---
