Product Details
Product Description
Product Description
Item specificsPlace of Origin: Shandong China (Mainland)
Speed: 1000~1500
Port: QINGDAO
Rated Current: 10824
Frequency: 50
Model Number: 6000 Diesel Generating Set
Rated Voltage: 400/230
Output Type: AC Three Phase
Payment Terms: L/C,T/T
Brand Name: Ji Chai
Diesel Generator: Diesel Generator
Rated Power: 1350~2000KW
Supply Ability: 400 Set/Sets per Month
Specifications6000 Series (1350~2000Kw) Diesel Generator
1. Newly-designed by adopting modern technology from AVL of Austria
6000 Series (1350~2000Kw) Diesel Generator

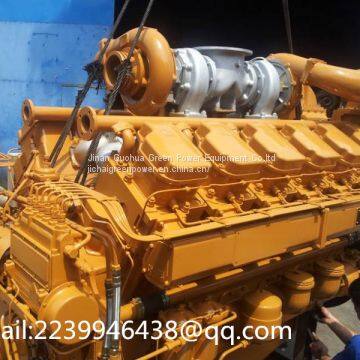

Description of 6000 Diesel Generating Set:
1. Newly-designed by adopting modern technology from AVL of Austria
2. Power: 1350~2000 KW
3. Rated voltage: 400/230 V
4. No-load voltage regulation: 95~105% of rated voltage
5. Different kind of generators is available to meet customers specific requirements
Applications:
With the powerful 6000-diesel engine, this genset is widely used in power plants.
Specification of 6000 Diesel Generating Set:
Set
model
| Diesel engine
model
| Generator model
| Rated power(KW)
| Rated voltage
(V)
| Rated frequency (HZ)
| Overall dimensions L*B*H
(mm)
| Net weight (Kg)
|
1350GF
| H12V190ZL
| DIGI1308/4
| 1350
| 400/230
| 50
| 7880×2869×3175
| 19100
|
1350GF-K
| H12V190ZLD
| 1FC6566-4TA42
| 1350
| 400/230
| 50
| 5930×2180×2421
| 17000
|
1350GFZ
| H12V190PZLD
| 1FC6566-4TA42
| 1350
| 400/230
| 50
| 7880×2869×3175
| 19500
|
1500GF
| H12V190ZL
| 1FC6566-4TA42
| 1500
| 400/230
| 50
| 7880×2869×3175
| 19500
|
1500GF-K
| H12V190ZL
| HCI734H2
| 1500
| 400/230
| 50
| 5930×2180×2421
| 17000
|
1500GFZ
| H12V190ZLD
| 1FC6566-4TA42-Z
| 1500
| 400/230
| 50
| 7880×2869×3175
| 19500
|
2000GF
| H16V190ZLD
| 1FC5636-4BA42
| 2000
| 400/230
| 50
| 9060×2869×3175
| 24000
|
2000GF-K
| H16V190ZLD
| 1FC5636-4BA42
| 2000
| 400/230
| 50
| 7150×2180×2421
| 21000
|
2000GFZ
| H16V190ZLD
| 1FC5636-4BA42
| 2000
| 400/230
| 50
| 9060×2869×3175
| 24000
|
Main Electrical Performance Data:
Voltage
| Frequency
|
|
|
|
|
|
|
Steady-state adjusting rate
| Transient-state adjusting rate
| Stable time
| Fluctuation rate
| Steady-state adjusting rate
| Transient-state adjusting rate
| Stable time
| Fluctuation rate
|
±2.5%
| 15%~+20%
| 1.5S
| 0.5%
| 5%
| ±10%
| 7S
| 0.5%
|
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage
|
|
|
|
|
|
|
|
Control Panel
The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
>>
