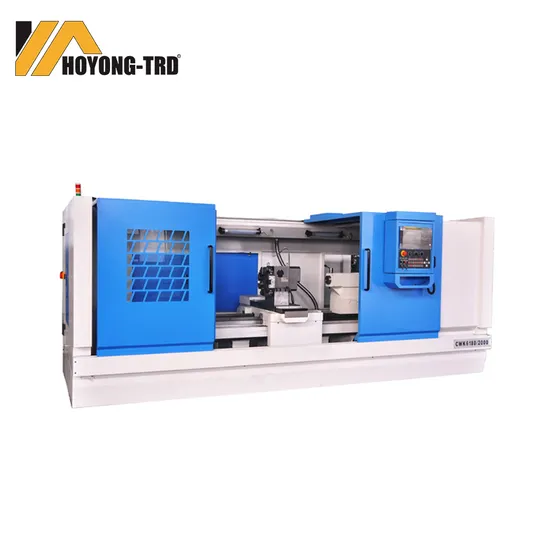

Ck6180 China Machine Flat Bed Heavy Duty CNC Manual Turning Metal Lathe Machine Torno Factory Price

US$10,000.00-22,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6180
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
400mm, 460mm, 500mm
Swing Over Cross Slide
180mm, 250mm
Max. Turning Length
750/1000/1500mm
Spindel Bore
80mm
Spindle Speed
100-2000rpm
Spindel Nose
A2-6
Motor Power
5.5kw
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581100
Production Capacity
30

Product Description


CNC LATHE FEATURES: The surface of the bedways is supersonic frequency hardened and precision grinding Independent headstock,also all gears and high-low headstock can be optional to fit different working cutting Spindle bore is 100mm
Model CK6180
Max dia.swing over bed 800mm
Max dia.swing over cross slide 480mm
Max.length of work-piece 3000mm
Width of bed 600mm
Spindle bore 105mm
Max bearing weight 4T
Spindle nose C11
Spindle taper hole 1:20/120
Power of spindle motor 15KW
Mode of spindle speed Three gears, smooth adjustment
Range of spindle speed 40-125;110-350;290-950r/min
Center of spindle Morse NO.6
X/Z rapid traverse 4000/8000mm/min
Min. Feeding set unit of X/Zaxis 0.001mm
X-axis motor Speed 1500r/min
Torgue 15N.m
Power 2.3Kw
Z-axis motor Speed 1500r/min
Torgue 30N.m
Power 4.7Kw
Tailstock quill Diameter 100mm
Travel 250mm
Taper Morse NO.6
Electric tool-post Model LDB4-6180
No.of tool stations Vertical four-station
Dimension 280×280mm
Turret indexing time 4.1S
Positioning accuracy 0.020mm
Repositioning accuracy 0.01mm
Overall dimensions(L*W*H) 5100×2060×1860mm
Machine weight 8T
