Precision Gap-Bed Lathe Machine/Horizontal Gap-Bed Lathe Machine/Universal Gap-Bed Lathe Machine

US$5,000.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
C6236H, C6240H, C6250H, C6260H LATHE MACHINE
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Steel Pallet Packaged
Specification
CE/ISO/SGS/GOST CERTIFICATION
Trademark
SIECCTECH/SIECC
Origin
Jiagnsu, China
HS Code
8458190000
Production Capacity
200 Set /Month

Product Description

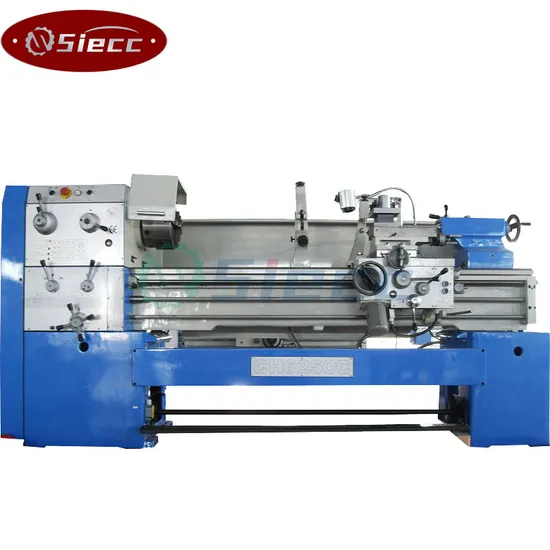

Lathe Machine:
Tailstock locked by thread and camlock.
Spindle hole 52mm, the nose conforms to SO-C6
Kinds of threads.
Model CH6236G/750MM CH6236G/1000MM
CAPACITY Max.swing over bed 360mm
Max.swing over cross slide 198mm
Max.swing over gap 476mm
Center Distance 750mm 1000mm
HEADSTOCK Spindle hole 38mm
Spindle nose ISO-D5
Spindle taper MT5
Spindle speed(Number) (8steps)70-2000rpm
FEEDS Metric threads range 26kinds 0.4-7mm
Inch threads range 34kinds 56-4 T/inch
Longitudinal feeds range 20kinds 0.052-1.392 mm/r
Cross feeds range 20kinds 0.078-1.044 mm/r
TAILSTOCK Taper of tailstock sleeve MT3
Max.travel of tailstock 100mm
MOTOR Main drive motor 1.5KW
PACKING
L*W*H		 Center Distance(750mm) 175*75*100cm 200*75*100cm
N.W/G.W Center Distance 570/620kg 640/690kg
