Energy Conservation 780 Ton High Satisfaction Multiple Repurchase Factory Price Injection Machine

Product Description

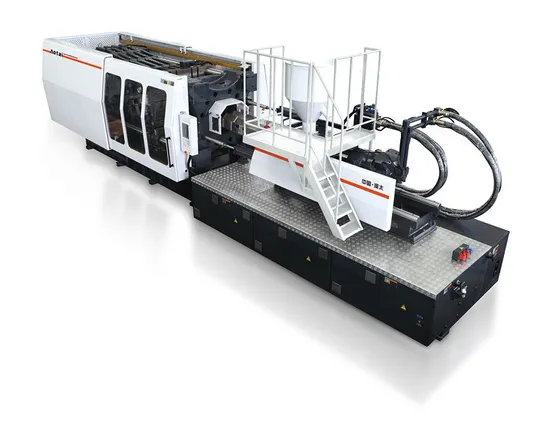

780ton High Efficiency Energy Saving Injection Molding Machine (AL-UJ/780C)
Some of the important features:

Clamping system: Faster response, stable and high rigidity

Injection system: Accurate and flexible, lower rejection rate

Control system: Computer and simple operation,molding data memory system

Power system: Energy saving, high efficient and precise

Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.


Other Information

Show High Precision: The accurate injection positioning,pressure, speed and pressure maintaining,to ensure the repeatability error of injection accuracy less than 0.3% to achieve precision molding.

Super EnergySaving Features: Compared with standard injection machine,the energy saving rate can reach 40%-70% for the same plastic production.

High Efficiency: Compared with standard machine,the total efficiency can increase by 10% and dragging capacity is can increase by18%.

High Response System:The system acceleration and deceleration performance is quite agile and force&speed regulation is very sensitive.The sampling processing speed can reach 100KHZ and system quick start time can reach 0.05s.

Maintain Stability and Reliability:The pressure or speed is stable and switch of pressure maintaining is smooth and accurate.

Low Oil Temperature:Avoid high pressure unloading and low oil temperature situation during operation.Improve the operation performance.promote using efficiency and save a large quantity of cooling water.

INTERNATIONAL CLASS NO		780/5580
U STYLE SPECIFICATION		U/780C
Screw type	Unit	A	B	C	D
Injection Unit
Screw diameter	mm	90	95	105	110
Screw L/D ratio	L/D	23.2	22	19.9	19
Shot volume(therretical)	cm 3	2861	3188	3894	4273
Injection weight(PS)	g	2603	2901	3543	3888
Injection rate	g/s	574	640	781	858
Injection pressure	M Pa	195	175	143	130
Screw speed	rpm	115
Clamping unit
Clamping force	KN	7800
Open stroke	mm	1000
Space between tie-bars(WxH)	mm x mm	980x980
Max mould height	mm	1000
Min mould height	mm	400
Ejector stroke	mm	300
Ejector force	KN	210
Others
Max pump pressure	M Pa	16
Servo system power	KW	37+37
Heating power	KW	56.7
Numbers of heating area		6+1
Machine demension(LxWxH)	m	11.58x2.30x3.20
Oil tank cubage	L	1200
Machine weight	t	45.7
Remarks:The company reserves the right to modify the specification parameters without notice.

---
