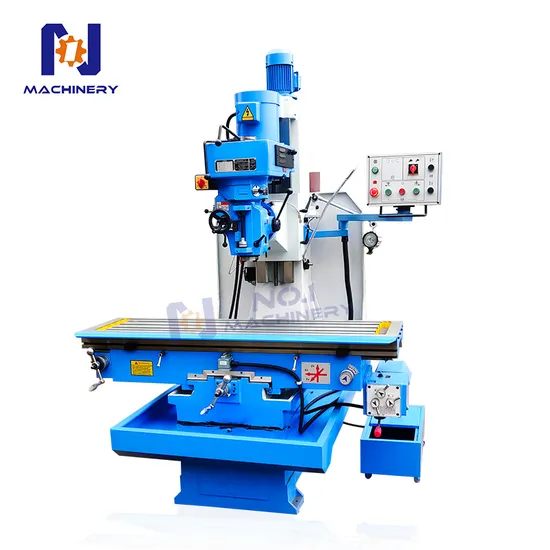

Customized Milling Machine X7136 Bed Type Vertical and Horizontal Turrent Milling Machine

Product Description

Product Description
The main performance characteristics:1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent

Product Application:The milling machine is a broad-spectrum tool type milling machine, it can undertake vertical milling, horizontal milling, drilling and boring, reaming and grinding and other processing work.
These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry.
The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B±45ºand L-R ±90ºand the rocker can move front and back on the upper bed and can swing 360º.
The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life. Product Parameters

PARAMETER ITEM	UNIT	X7132	X7136
Size of worktable	mm	1500x320	1500x360
Table travel	mm	1000/320/400	1000/360/450
T-groove	-	3-14x70	3-18x80
Vertical spindle taper	-	R8	MT40
Horizontal axis taper	-	ISO40	ISO40
Spindle speed range	rpm	50HZ:65-4500 / 60HZ:80-5440	50HZ:65-4500 / 60HZ:80-5440
Horizontal axis speed range	-	40-1300	60-1800
Spindle stroke	mm	127 (V)	127(V)
Spindle feed range	mm	0.045,0.086,0.142	0.045,0.086,0.142
Distance from spindle face to table	mm	140-540	140-590
Distance from end face of horizontal shaft to table	mm	0-400	0-450
Main motor power	kw	3HP/3kw	5HP/4kw
Weight of machine tool	kg	2000	2400
External dimensions	mm	2200x1820x2350	2600x2200x2550

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
