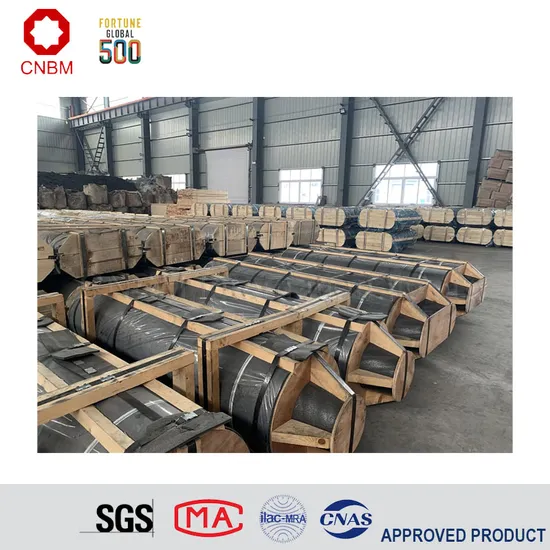

Good Quality High Power UHP Graphite Electrode Used for Steel Making

Product Description

Graphite Electrode
Graphite electrode is made from the domestic first class petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steels, metal and other nonmetallic materials, etc. The Graphite electrodes include: regular power, high power, ultra high power and square electrode. The range of diameters covers from 200mm to 800mm. Our products own the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy.
CNBM and its partner have 4 production bases and the annual production capacity of graphite electrodes is 60,000 MT.
Technical Specifaication:

Item		Unit	RP		HP		UHP
			250-400	450-800	300-400	450-700	300-400	450-700
Electric Resistivity	Electrode	μΩ.m	7.5-8.6	7.5-8.8	5.5-6.8	5.5-7.0	4.6-6.0	4.8-6.2
	Nipple		4.5-5.5		4.0-5.0		3.5-4.5
Bending Strength	Electrode	MPa	≥8.0		≥11.0		≥11.0
	Nipple		≥15.0		≥16.0		≥18.0
Elastic Modulus	Electrode	GPa	≤9.0		≤11.0		≤13.0
	Nipple		≤13.0		≤14.0		≤15.0
Bulk Density	Electrode	g/cm3	1.55-1.65		1.63-1.73		1.65-1.75
	Nipple		1.70-1.75		1.73-1.80		1.75-1.82
Ash	Electrode	%	≤0.3
	Nipple
CTE(100-600)ºC	Electrode	10-6/ºC	2.00-2.50		1.80-2.00		1.30-1.50
	Nipple		1.50-1.80		1.50-1.80		1.20-1.40

Graphite Electrode Process Flow&Dimension Drawing of Nipples

Allowable Capacitance Flow of the Electrode&Standard Sizes and Tolerances
Company Profile
CNBM INTERNATIONAL CORPORATION
Build your world with our materials.
We are a primary subsidiary of China National Building Material Group Co., Ltd.
CNBM Group is a central government-owned enterprise and a Fortune Global 500 company (Ranking 203th in 2019). It is the largest building material manufacturer and service provider in the world, with 15 publicly-listed companies and over 180,000 employees (2019). We have more than 300 factory plants in China. For the refractory, we are top 3 in China. We have more than 17 plants in different cities.
Production Facilities

Production Process
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Current Carrying Capacity

Nomina diameter		RP		HP		UHP
		Current Carrying Capacity	Current Density	Current Carrying Capacity	Current Density	Current Carrying Capacity	Current Density
in	mm	A	A/cm2	A	A/cm2	A	A/cm2
12	300	10000-13000	14-18	13000-17400	17-24	15000-22000	20-30
14	350	13500-18000	14-18	17400-24000	17-24	20000-30000	20-30
16	400	18000-23500	14-18	21000-31000	16-24	25000-40000	19-30
18	450	22000-27000	13-17	25000-40000	15-24	32000-45000	19-27
20	500	25000-32000	13-16	30000-48000	15-24	38000-55000	18-27
22	550	32000-40000	13-16	35000-55000	14-22	42000-64000	17-26
24	600	35000-41000	13-15	41000-61000	14-21	50000-73000	17-25
28	700	39000-48000	10-12	55000-82000	14-21	67000-99000	17-25
32	800	43000-54000	8-10	/	/	/	/

Customers Visit
FAQ
Q:Are you a trading company or manufacturer?
A:CNBM is a large-scale central governmental industrial group with its own manufacturing sector, research and development sector, trading sector and logistics sector.
Q:I have some special requirement about specifications.
A:We have a well-rounded product range, which endows us with the capability of applying many special specifications. Please feel free to contact us with yours.
Q:Do you accept OEM service?
A:Yes, we do.
Q:What is your delivery time?
A:It depends on the size/complexity of your order and our own production schedule. Usually we provide a faster delivery than the industry's average.
Q:What is the payment term?
A:Our payment terms are negotiable.
Q:Can I have my own logo on the product?
A:Sure, we can apply your own logo on the products according to your requirement.

---
