Hot Galvanized Battery Layer Cages Egg Chicken Cages with Automatic Equipment

Product Description

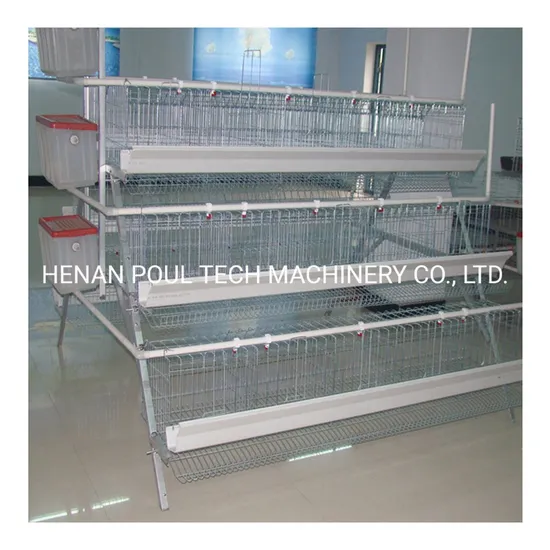

A FRAME LAYER CAGE SYSTEM
A frame layer cage system designed both for open and close house worldwide,especially using widely in tropical country such as Africa,South East Asia and South Asia where the farmers have large scale land for the big poultry farms.
Type A layer cages are suitable for open and closed chicken house. It can increase the density of the house, make the most of the house, and control the body weight of the layer. We have fully automatic equipment, semi-automatic equipment and equipment-free cages. The fully automated equipment is equipped with feeding system, drinking water system, manure removal system and temperature control system.
CAGE SYSTEM
The design of the cage is 2/3/4 tiers, and the common one without automatic equipment is 3 layers, which is convenient for the farmers to operate.

Kind	Tiers	cage dimension/tier	birds/cell	birds/set
A260	2	195*35*38cm	30	60
A390	3	195*35*38cm	30	90
A396	3	195*35*38cm	32	96
A3120	3	215*42*41cm	40	120
A4120	4	195*35*38cm	30	120
A4160	4	215*42*41cm	40	160

The bottom net of the chicken cage uses 81 bottom wires with a gap of 25mm. The chickens stand comfortably and the feces are easy to fall off. Each cage is separated by a closed partition, which is made of hot-dip galvanized steel and has a thickness of 1.10mm, which can ensure complete isolation of chickens between different groups and maintain a peaceful and quiet space for the chickens. At the same time, the perforated partitions also provide sufficient ventilation for the house.
FEEDING & DRINKING SYSTEM
Both of the traveling hopper type and chain feeding system are available.
The feeding cart connected with the silo by the transverse feeding auger is more popular here.In this system,feed is distributed automatically to the feed cars from the feed silos by the spiral augers located in a pipe with 90-150 mm diameter.The Augers materials made in South Africa, also the best quality worldwide.
The drinking system is made up by the square pipes or round pipes with 360 degree flowing nipple drinker,water drip cups and water pressure regulators,terminals,splits,water filters makes sure the water clean and no harmful to thr layers.
AUTOMATIC EGG COLLECTION SYSTEM
It is made up by egg collection machines,egg collection belts and egg belt hooks. The machines can be from 2 tier to 8 tier.A frame cages also can be equipped with egg conveyor system which can deliver all eggs from different house to egg storage room.
AUTOMATIC MANURE REMOVAL SYSTEM
The scraper type manure collection machines is designed for A frame cage systems which has manure pits under the cages. The manure dropping from the cages in the manure pits, and the scraper can collect the manure from the manure pits to the outside of the chicken house. This system is popular design in China market or other countries who want to raise chickens on floor with cages.
FAQ:
1. Q: What kind of products do you have?
A: We provide all kinds of equipment for chicken farms, such as Chicken Cages, Automatic Drinking and Feeding System, Automatic Egg-collection System, Automatic Manure Removal System, Temperature Controlling System, etc.
2. Q: How many days will you deliver the products if I place the order?
A: Depends on the quantity you request, in 7 working days or 30 working days.
3. Q: How to install the cages when I get them?
A: If you want install the cage yourself, we will provide the Installation Manual.
If you need the professional engineer, we will send our engineer who can speak English Fluently.
4. Q: Could you please tell me the detailed information of cages? and how to get the cages?
A: Contact Kevin, you will get the detailed answers from him.
Our Aim is to make your Farm Raising more Convenient and Efficiency. Welcome to Inquiry and Visit Our Factory anytime

---
