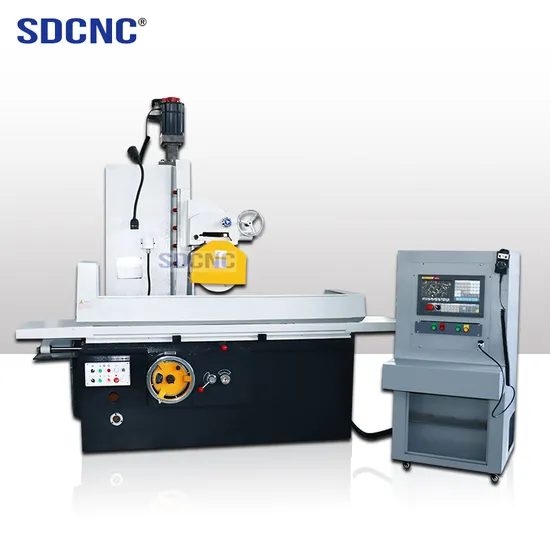

Hydraulic CNC Automatic Metal Crankshaft Centerless Mk7132 Cylinder Head Surface Grinding Machine

Product Description

Detailed Photos
Product Description
he main performance characteristics : The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology. Grinding head vertical rapid lifting, improve production efficiency. The grinding head lateral movement driven by hydraulic motor, which can also be manually. The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool. Application : Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters

Main technical specifications	Description			MK7132	MK7140	MK7150
	Size of workatable (L×W×H)		mm	1000×320×400	1000×400×400	1250×500×600
	Max.Longitudinal movement of worktable		mm	1100	1100	1350
	Max. Distance from the spindle centerline to the worktable surface		mm	580	580	800
	Max.Cross movement grinding head		mm	350	450	570
	Vertical movement of the grinding head by handwheel		mm	0.005	0.005	0.005
	Rapid lifting motor	power	Kw	2.3	2.3	2.3
	Rapid lifting motor	power	Kw	1.2	1.2	1.2
	Abrasive wheel dim (D×d×w)		mm	Φ350×40×127	Φ350×40×127	Φ400×50×203
	Speed of grinding wheel		r/min	1440	1440	1440
	Total power of motor		Kw	14	14	16.5
	Power of spindle motor		Kw	7.5	7.5	9
	Power of oil pump motor		Kw	3	3	4
	Processing accuracy		mm	00:00.0	00:00.0	00:00.0
	Surface roughness		μm	Ra:0.63	Ra:0.63	Ra:0.63
	N/G weight		Kg	3980/4200	4300/4600	5500/6200
	Package (L×W×H)		mm	2800×1750×2350	2800×1750×2350	3600×1930×2600

---
