Product Details
Product Description
Product Description

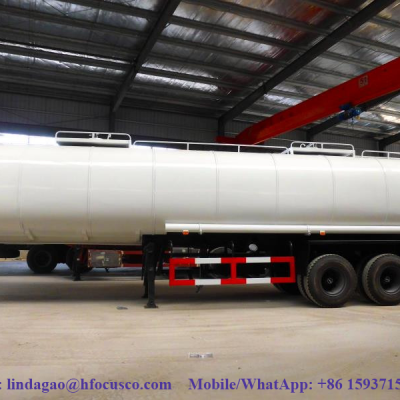

Carbon Steel Fuel tanker trailer is mainly used to transport petroleum products, also for kerosene, diesel oil, vegetable oil, cooking oil and coal tar and other substances. The tank has built-in multiple reinforced wave partition plates, and the bottom of the partition plate has through holes to reduce the impact of fuel oil in the tank during driving and improve the strength of the tank body.
The combination tank mouth is located at the top of the tank body. There is a self-locking small cover above the large cover. The breathing valve is installed on the upper side of the large cover to ensure the same atmospheric pressure inside and outside the tank. The pump oil system is installed, and the power is taken from the transmission side through the power take-off device. Two fire extinguishers and special tools. Compared with ordinary Fuel tankers, the fuel tank trailer can effectively improve transport efficiency, and save fuel consumption.
Carbon steel oil tank trailer For Sale with very competitive price from Chengli Special Automation Company!
Advantage
Specifications
The advantage of 2 Axles 40M3 Carbon Steel Fuel Tank Trailer
1.High transport efficiency, ensuring the products will not be deteriorated in the process of transportation.
2.Rational structure, safe and comfortable driving cab design.
3.Reasonable design, advanced technology, safety and reliability, energy saving and
environmental protection.
4.Axles are Chinese brand FUWA
5.Secure connection and high safety
The specification of2 Axle40m³CarbonSteel Fuel Tank Trailer
Description
| Fuel tank trailer
|
Vehicle Main Dimensions
| Dimensions(L x W x H)mm
| 10190x2500x3650
|
Wheel base (mm)
| 5700+1310
|
Overhang (front/rear) (mm)
| -/1680
|
Approach/Departure angle(°)
| -/18
|
Weight in KGS
| Curb Weight
| 5500
|
GVW.
| 35000
|
Max. driving speed(km/h)
| 75
|
Tank Body
|
Shape
| Mono block cylinder
|
Material
| 5mmcarbonsteel
|
End plate
| 6mmcarbonsteel
|
Lifting Ladder
| Including top walkway and backside steel material
|
Bottom valve
| 2 sets of API pneumatic bottom valve
|
Discharging valve
| 2set 100mm discharging valves
|
Compartment
| 1or 2/3 as custom need
|
Discharging pipe
| 4 rubber hose，2 pc，6m long
|
Manhole cover
| Steel manhole cover，500mm，2sets with 2breather valves
|
Chassis
|
Main beams
| Special design 1 beam, connected by bolts and nuts with tanker body. Removed from tank body for separate transportation
|
Axle
| 2 axles
|
FUWA 13Ton
|
Landing gear
| JOST brand two-speed, manual operating, heavy duty landing gear
|
King pin
| JOST brand 2” bolt-in king pin
|
Suspension
| German design heavy duty mechanical suspension
|
Pneumatic Braking system
| WABCO RE 6 relay valve. T30/30+T30 Spring brake chamber
|
Wheel rim
| 10R22.5 11.00R20with one spare tire,9pieces
|
Painting
| Complete chassis sand blasting to clean rust .1cost of anti-corrosive prime.2 coats of final paint
|
Accessories
| One standard tool box
|
>>
