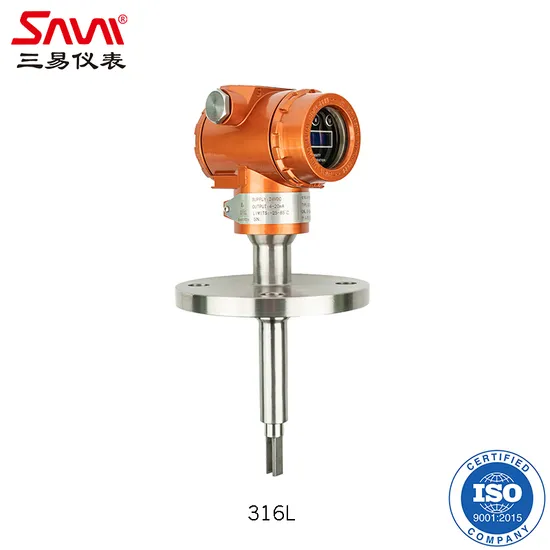

Tuning Fork Densitometer for Measuring The Density of Ferric Nitrate

Product Description

Product Description.Tuning fork density meter uses acoustic frequency signal source to excite the metal tuning fork,and makes the tuning fork vibrate freely at the center frequency.This frequency has a corresponding relationship with the density of liquid, therefore, the density of liquid can be measured by analyzing the frequency. And the temperature compensation can eliminate the temperature drift. While based on the corresponding relationship between density and concentration,the concensation of liquid under the 20ºC can be calculated .
.Direct insersion fork density/concentration meter that offers installation flexibility with continuous, real-time density and concentration measurement in pipelines, bypass loops and tanks.
. Various Fork Density Meters with different designs are built to tackle the most demanding process and control applications. We also offer customised to meet customer's different requirements. Features
Continuous on-line measurement of density, concentration and temperature of liquid media, with on-site display of density and temperature or concentration. at the same time output of 4-20mA analog signals and digital signals with RS485 or HART protocol (optional) to PLC or DCS control systems.
The instrument has a built-in temperature sensor with its own temperature compensation function, high precision and good stability.
Tuning Fork Density Meter is characterized by small size, long life, high reliability, light weight, no pipeline pressure loss, plug-and-play, integrated structure, flexible and convenient installation and less maintenance.
According to the user's liquid medium requirements to choose different materials: 316L, 316L lined with PTFE, Hastelloy C, Hastelloy B2, Hastelloy B3, titanium, ceramics and so on.
Threaded, flange and clamp mounting options are available, and can also be customized according to user requirements
Product Parameters

Display	LCD display,density/concentration display(SDT600-4);density concentration dual display(SDT600-04H)
Measurement range	0~1.5g/cm3 ,0~3g/cm3 ,0~50%,0~100%
Accuracy	0.001g/cm3 (standard condition),0.002g/cm3,1%,0.5%
Resolution	0.0005g/cm3
Allowable temperature	-20~120ºC
Ambient temperature	-25~85ºC
Operating voltage	DC24V
Electrical Connection	M20×1.5,1/2NPT
Output	4~20mA(four-wire),RS485 or Hart protocol
Connection type	split-type cable,flange,clmp and thread
Materials in contact with medium	316L,316L+PTFE,Hastelloy,Titanium,ceramic etc.
explosion-proof	flameproof ExdIICT6

Dimensional drawing (standard size)
Packaging & ShippingTransportation and storage
1. Suitable for the requirements of land and water transportation and cargo loading;
2. The products and accessories shall be stored indoors under the original packaging conditions, with the ambient temperature within -10~+55 ºC and the relative humidity not more than 85%.
Installation InstructionsIntegrated installation method
Split installation method
The above installation methods are for reference only
Company Profile
Zhongshan Sani Measuring Instruments Co., Ltd .Founded in 2009 at Tanzhou Town, Zhongshan City of China. Sani specialied in R&D, manufacture and sales of automatic process control instruments. Such as online density meters, concentration meters, pressure transmitters, flow meters, liquid level meters and temperature transmitters.Specially delicated in online concentration/density meters and pressure transmitters.Sani offers a wide range of density/concentration meters for any applications, all of which are easy to install, operate and maintain.Sani has a professional and experienced R&D team, and have been collaborating with some universities and Research Institutes in China, to make Sani becomes one of the leading manufactuers of industrial automatic process control instruments.And make sure to provide reliable,high precision, high cost performance measurement and control instruments.
Our AdvantagesSani adheres to the concept of "service first, quality assurance, and user confidence". We have provided high-quality supporting services for many domestic and foreign enterprises, and our professional technology and the concept of thinking about customers make us a reliable partner. We sincerely look forward to extensive cooperation with people and enterprises from all walks of life to jointly create a better tomorrow for industrial intelligent manufacturing.
After Sales Service1. Our products are all qualified products after strict inspection, with the products are accompanied by certificates of conformity, manuals and related accessories.
2. All products sold by Sani are entitled to life-long maintenance, and products exceeding the warranty period are provided with free service, and only the material cost of replacing the electrical components is charged.
3. Sani guarantees that the products will be shipped to the customer in time during the delivery period.
4.If the user receives the goods, found that the product quality problems or damage in transportation and can not be used normally, please contact our sales immediately, my company will reply within one working day.
5.Sani company provides users with product technical problems free of charge ,solve the problems of users in the process of installation and use, also offer customised to meet customer's different requirements.
FAQ1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer for online density meters, concentration meters, pressure transmitters since 2009.
2. Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
3. Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
4. Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcome.
5. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
6. Q: What is the lead time of your product?
A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.
7. Q: What international certificates do you have for your products?
A: We have CE, SIL,ISO9001
Application in chemical industry
In the domestic chemical industry, due to the limitations of working conditions and installation methods, the traditional density meters are large, installation is cumbersome, measurement errors are large, and single material is used; there is a lag in manual sampling and measurement, and it is inconvenient to take samples, and it has been unable to meet the requirements of automation control and large-scale production of enterprises.
Our online tuning fork density meter contains no movable parts. Compared with other density measuring equipment, the tuning fork density meter is characterized by small size, long service life, high reliability, light weight, no piping pressure loss, plug and play, simple installation, convenient maintenance, and has the advantages that cannot be replaced by other types of density measuring instruments, and has a good application prospect.

---
