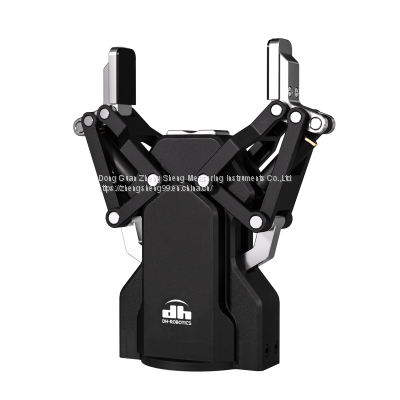

Servo-Electric Grippers AG-160-95

Product Details

Product Description

Product Description
Product features
1.Envelope adaptive grasp
2.Plug and play
3.Long stroke
Application scenarios
Cooperate with industrial robots to complete material handling, loading and unloading, assembly, testing, sorting and other tasks in auto parts, automation equipment, new energy and other industries
Technical parameters
Hold power(one side) ：45~160N
Total trip ：95mm
Maximum recommended load ：3kg
Open/close time : 0.7s/0.7s
Position repetition accuracy : ±0.03mm
Running noise：＜50 dB
The weight of the : 1kg
The transmission way ：Screw nut + connecting rod mechanism
size : 184.6mm×162.3mm×67mm
Runtime environment：
Working voltage ：24V DC±10%
Ratted current ：0.8A
Peak current ：1.5A
Protection grade ：IP54
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
