Hot Sale Hydraulic Shearing Machine

Product Description

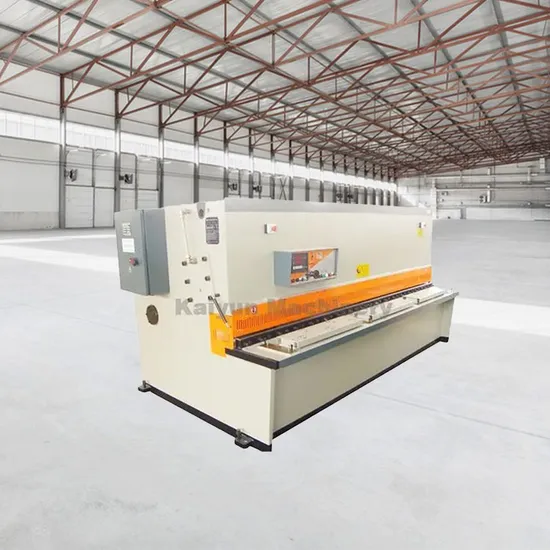

HYDRAULIC SHEARING MACHINE
FEATURES:
-- Frame welded, vibration to eliminate stress, high in rigidlty, sturdy and durable.
-- Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder, stead & reliable perfoman.
-- The postion oflow blade can be adjusted to ensure the epuilibrium of the gap after regrinding.
-- The protable and prompt adjusted of the blades gap, the value of gap is indicated by dial, positioning reliable.
-- Setting the backgauge by motor, The displessly devices used to the backgauge value and the shearing times are on the front of the machine.
--The stroke of knife or cbeam can be adjusted steplessly. Conveniently and fast.
-- Preselection of single or continous strokes, Preselection of cutting number and cutting strokes.
-- Roller guide to ensure the quality of cutting sheet-metal.
-- Equipped with lighting-alignment, so as to align when shearing.
--Protection fence and the electric interlocker to ensure the operation safety.
For the detail specification, welcome to visit our website.

Specification	Shearing Thickness (mm)		Shearing Width (mm)			Shearing Angel (°)		Number of Stroke (Min)	Back gauge Range (mm)		Motor Power (KW)		Size (LxWxH)
QC12Y-4x2500		4		2500	1°30'		20			20-600		4		3110x1430x1450
QC12Y-4x3200		4		3200	1°30'		18			20-600		5.5		3840x1675x1620
QC12Y-4x4000		4		4000	1°30'		16			20-600		5.5		4640x1850x1700
QC12Y-4x5000		4		5000	1°30'		14			20-600		7.5		5655x1850x1850
QC12Y-6x2000		6		2000	1°30'		20			20-600		7.5		2580x1530x1600
QC12Y-6x2500		6		2500	1°30'		18			20-600		7.5		3130x1530x1600
QC12Y-6x3200		6		3200	1°30'		14			20-600		7.5		3840x1675x1620
QC12Y-6x4000		6		4000	1°30'		14			20-600		7.5		4630x1850x1620
QC12Y-6x5000		6		5000	1°30'		8			20-600		11		5690x2000x2100
QC12Y-6x6000		6		6000	1°30'		10			20-800		11		6715x2130x2710
QC12Y-8x2500		8		2500	1°30'		12			20-600		11		3148x1850x1760
QC12Y-8x3200		8		3200	1°30'		10			20-600		11		3848x1900x1760
QC12Y-8x4000		8		4000	1°30'		8			20-600		11		4648x2650x1760
QC12Y-8x6100		8		6100	1°30'		10			20-600		22		6900x1850x2405
QC12Y-10x2500		10		2500	1°30'		10			20-600		18.5		3200x1850x1760
QC12Y-10x3200		10		3200	1°30'		10			20-600		18.5		3900x1800x1760
QC12Y-12x2500		12		2500	1°30'		8			20-800		18.5		3225x1800x1940
QC12Y-12x3200		12		3200	1°30'		10			20-800		18.5		3925x1800x1940
QC12Y-12x4000		12		4000	1°30'		10			20-800		18.5		4725x2000x2040
QC12Y-12x5000		12		5000	1°30'		8			20-800		18.5		5750x2260x2240
QC12Y-16x2500		16		2500	2°		8			20-800		22		3350x2000x1890
QC12Y-16x3200		16		3200	2°		8			20-800		22		4050x2050x1890
QC12Y-16x4000		16		4000	2°		6			20-800		22		4850x2190x2250
QC12Y-20x2500		20		2500	2°30'		5			20-800		30		3325x2265x2200
QC12Y-20x3200		20		3200	2°30'		5			20-800		37		4025x2265x2350
QC12Y-25x2500		25		2500	3°		5			20-800		37		3365x2260x2430

---
