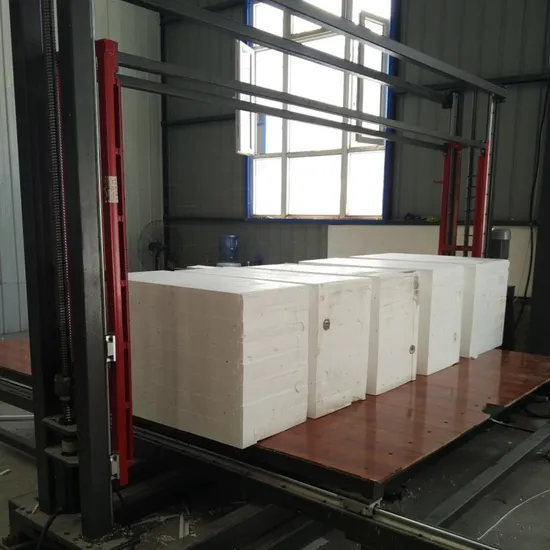

Good Reputation EPS Thermocol Foam Shapes CNC Cutting Machine

Product Description

Main Features:
1. The aluminum frame connected by specialized fastenings creates stable performance and precise cutting.
2. Equipped with stepping motor,suits to cut the specially designed figures with requirement of adjustable speeds.the cutting precision can be 0.3-0.5mm.
3. Equipped with 3kw transformer,adjustable power output ranges from 0to 7v under electrical control.
4. 20pecs cutting wire can be set at one time,which exceed sthe regulated cutting stroke,the machine can stop running automatically.
5. With fuction of cutting stroke protection:when exceeds the regulated cutting stroke,the machine can stop running automatically.
6. With 17"screen and brand computer,the machine realize the disign&cutting,all software for drawings and cutting are english version.it is easy to understand and operation.cutting software have powerful function,such as automatic memory system while power shut-off,reverse and rotating cutting,mirror symmetry cutting,automatic clearance compensationsystem,which keep accurate and convenient cutting.
7. Rotation platform is optional, achieve to 5 axis cutting.

TECHNICAL DATA
Item		Unit	Parameters
Max cutting block size		mm	4000*1500*(1250~1500)
Cutting wire		mm	Φ 0.4 G20Ni80
Stepping motor torque		N. m	18
Power		Kw	5
Cutting speed		m/min	0~4
Cutting transfer	Capacity	KVA	3
	Voltage	V	0~70(adjustable)
Overall dimension		mm	5500*2500*2600
Weight		Kg	750

---
