Diamond Tools Circular Saw Blade for Granite Marble Stone Block&Tile Cutting

Product Description

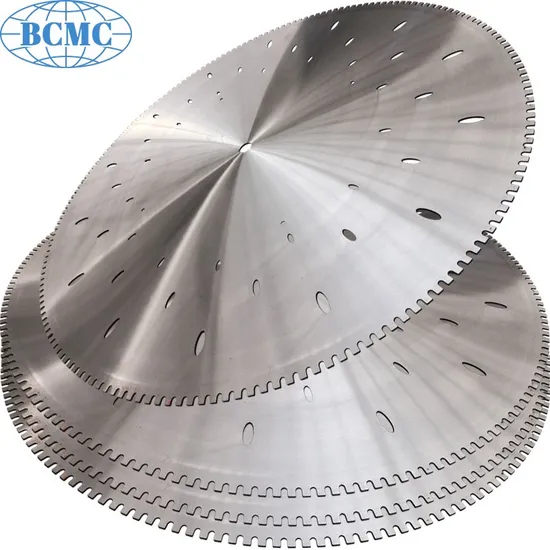

BCMC Machinery HSB-3600 is a kind of stone cutting blade for quarry cutting work. Suitable for most type of stone quarry machine. Able for cutting granite, marble, quartz etc. Perfect suitable for our BCQK, BCQT & BCQZ series quarry machine. We have range of blades in different specification for you to choose.
Main Features: Special design to reduce the weight of the blade and cutting load. Improve the cutting efficiency. Fewer power consumption. Save the consumption by about 30%. Help to reduce your mining cost. Good slag discharge. Bring out the sand and dust during the cutting procedure. Keep durable using. Hollow holes design for bringing the cooling water into the saw seam to cool the blade. Keep the blade still in a good working statement and prevent deform, soften of the blade. Also, release the stress during working to prolong the blade life.
Parameters:

Item No.		1	2	3	4	5	6
Blade diameter	mm	3000	3300	3500	4000	4200	4500
Diameter of center hole	mm	100	100	100	100	100	100
Thickness	mm	9.5	9.5-10.5	9.5-10.5	11.5	11.5	11.5
Number of teeth	pc	160	168	180	198	208	218
Groove depth	mm	33	34	35	40	40	40
Groove width	mm	27	28	29	33	34	36

Application:
* Stone quarry machine
* Stone cutting machine
* Brick cutting
* Granite cutting
* Concrete cutting
* Masonry cutting
* Stones cutting
* Quartz cutting

---
