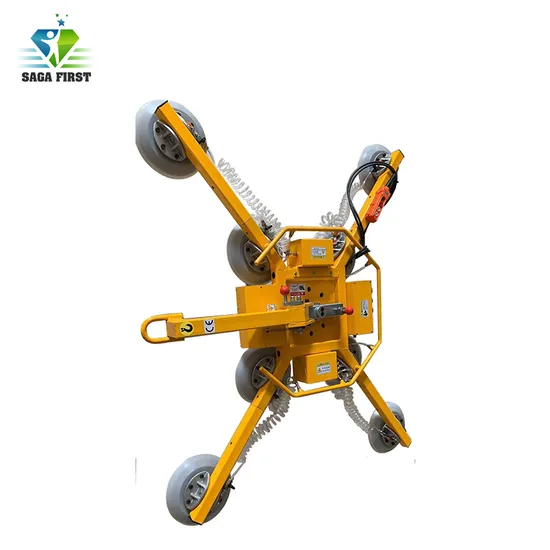

200kg-1000kg Electric Glass Suction Lifter X Type Vacuum Suction Cup

Product Description

GL-SC Series Portable Manual Glass Lift Vacuum Glass Suction Cap for sale
Sagafirst suction cap are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.
Data Sheet:

Model		GL-SC-400	GL-SC-600	GL-SC-800	GL-SC-1000
Lifting Capacity	kg	400	600	800	1000
Cup Qty	/	4	6	8	10
Single Cup Size	mm	300	300	300	300
Single Cup Lifting Capacity	kg	100	100	100	100
Rotation	/	360°manual rotate
Tilting	/	90° manual
Volte	V	DC12
Charger	V	AC220/110
Weight	kg	70	90	100	110
Sucker Frame Size	mm	850*750*300	1800*900*300	1760*1460*300	1900*1600*300
Extension Bar Length	mm	500
Control System	/	Integrated Control Cabinet and Wired Remote Control
Overall Size after packing by wooden box	mm	1230*910*390
Gross Weight after packing by wooden box	kg	97	110	123	150

Features & Advantages:
1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .
2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)
3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric
4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.
5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.
6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value
7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.
8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
Photo Show:
CE Certificate and Factory Show:

---
