300kg to 800kg Electric Glazing Robot Marble Granite Slabs Lifting Equipment Crane Suction Cups Vacuum Glass Lifter

Product Description

300kg to 800kg Electric Glazing Robot Marble Granite Slabs Lifting Equipment Crane Suction Cups Vacuum Glass Lifter
(OEM&ODM Service)
Product Description

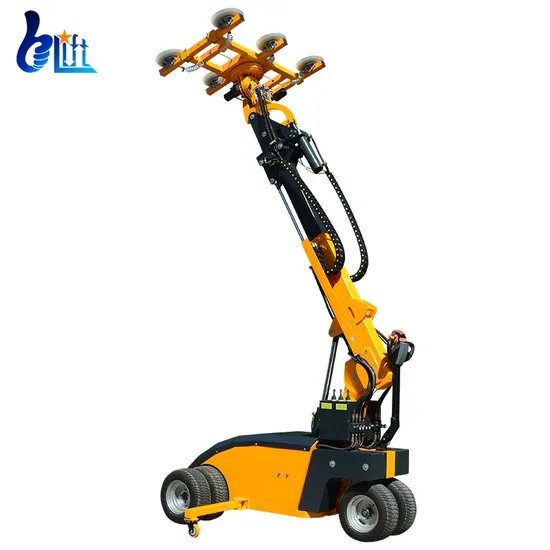

Belift Brand Vacuum lifter LD Series is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
Vacuum suction cup machine is mainly suitable for the installation or transportation of glass, wood, cement and iron plates.The difference from the glass suction cup is that the sponge suction cup needs to be replaced to absorb other materials.Automatic glass loading machine is equipped with an adjustable bracket that can be extended to adapt to panels of different sizes.
Features and Advantages:
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button;
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction;
3. Pad frame automatic vertical up/down by 180degree;
4. Automatic lateral side shift 100mm;
5. Automatic rotation 360 degree and automatic turn lef/right are optional.
Product Parameters

Model Type		BGL-LD-300		BGL-LD-400		BGL-LD-500		BGL-LD-600	BGL-LD-800
Load Capacity		300kg (retract)		400kg (retract)		500kg (retract)		600kg (retract)	800kg (retract)
		150kg (extend)		200kg (extend)		250kg (extend)		300kg (extend)	400kg (extend)
Lifting Height		3500mm		3500mm		3700mm		3700mm	4500mm
QTY of Suction Cap		4pcs		6pcs		6pcs		6pcs	8pcs
Rubber Suction Cap		Ø300mm		Ø300mm		Ø300mm		Ø300mm	Ø300mm
Maintenance-free Battery		2x12V/100AH		2x12V/100AH		2x12V/120AH		2x12V/120AH	2x12V/120AH
Battery Charger		Smart Charger		Smart Charger		Smart Charger		Smart Charger	Smart Charger
Drive motor		24V/600W		24V/600W		24V/900W		24V/1200W	24V/1200W
Lifting Motor		24V/2000W/5L		24V/2000W/5L		24V/2000W/5L		24V/2000W/12L	24V/2000W/12L
Chassis L*W		2660x810mm		2660x810mm		2800x810mm		2800x810mm	2800x810mm
Driving Wheel		Ø250x80mm		Ø250x80mm		Ø310x100mm		Ø310x100mm	Ø300x125mm
N.W/G.W		1100/1150kg		1280/1330kg		1300/1350kg		1400/1450kg	1600/1650kg

Detailed Photos


Company Profile
Shadong Belift machinery is specialized in the industry of Manufacturing Aerial Work Platforms and Material Lift Platforms. Establised in the year of 2015, now our products are welcomed the customers all over the world. Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business. We will pick up you and arrange the accommodation hospitally.
Dealers and Wholesalers are especially welcomed and we will give special discounts.

After Sales Service
1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Liftetime techinique support.
4.24 hours telephone and Internet service
FAQ
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.
