Product Description
Product Description
Hot Melt PUR Laminating Machine
Hot Melt Film Laminating Machine
Functional Hot Melt Laminating Machine
Automatic Film Laminating Machinery
Foam Lamination Machine
KUNTAI Laminating machine vidoes links:
Hot Melt PUR Lamination Machine https://youtu.be/j3tVeIdim04
Automatic Laminating Machine for Fabric with Membrane or Film https://youtu.be/i2cX6s6syfs
Laminating Machine for Shoes, Bags, Box, etc. https://youtu.be/zi02S_LJ92k
Automatic multifunctional laminating machine https://youtu.be/puqwQ2JnwQQ
Laminating Machine - Product Description
Laminating Machine for :
1. EVA + PVC, PU or Artificial Leather
2. EVA + Fabric (for shoe materials, etc)
3. Neoprene + Fabric (for diving suit, etc)
4. PU Foam + Fabric (for bra, vehicle cushion, etc)
5. TPU Film + Fabric. (for climbing clothing, camouflage uniform, etc)
6. Fabric + Fabric. (for clothing, medical supplies, etc)
Hot Melt Adhesive
In industrial use, hot melt adhesives provide several advantages over solventbased adhesives. Volatile
organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt ad
-hesives have long shelf life and usually can be disposed of without special precautions.
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive
and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is
soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the
temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag
-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medi
-cal industry application possible.
When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, water
-proof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different
new materials will be created. The demands of garment industry, motor manufacturing, medical industry,
environment protection industry will be met.

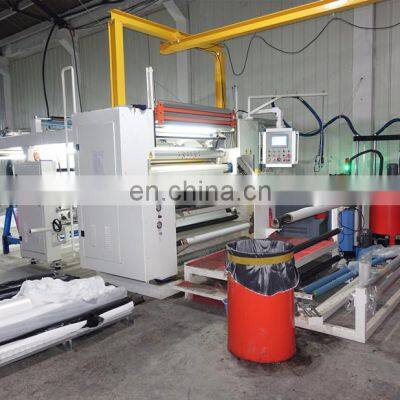

Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film
transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot
melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer
unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to
maintain.
Standard Technical Parameters (Customizable):
| Model: | KT-PUR-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Gluing Amount: | 5-80g/m2 |
| Machine Speed: | 10-60 m/min |
| Power: | 45.0 KW |
| Electric Current and Voltage: | Customizable |
| Estimated Net Weight: | 11000 KGS |
| Estimated Dimension: | 11800 x 3400 x 3600 mm |
Key Features:
Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.Famous brand motors and inverters can be installed for stable machine performance.Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.Fabric and film openers also makes materials feed smoothly and flatly.For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.Parallel centering unit makes sure the materials feed in order.Specially designed gluing system well controls the adhesive amount and guarantees precision.For the hot melt adhesive melter, temperature control is accurate and stable.Final laminated materials can be rewinded into small rolls or large rolls.Low maintenance cost and less running noise.Advanced technology, secure quality control and satisfactory aftersales service make our lamination machines the first choice for customers both domestically and internationally.
Laminating Machine - Application
Laminated Materials Waterproof and Breathable Capacity Test
Other Laminating Machines that are popular in your market:
Laminating Machne - Packaging & Shipping
Laminating Machine
Inner Package: Protective Film, etc
Outside Package: Standard Export Container
Machines well packed with protective film and loaded in export container;English version operation manual and technical data;One-Year-Period wear parts;Tool kit
Our Services
Engineers Overseas Service Available for Laminating Machine
Since 1985, we have been designing and manufacturing various lamination machines for every sector of textile industry. Our lamination machines have been well accepted by the wide domestic market as well as the competitive international market. Strong engineering power and satisfactory aftersale service consolidate our leading place in the industry.
