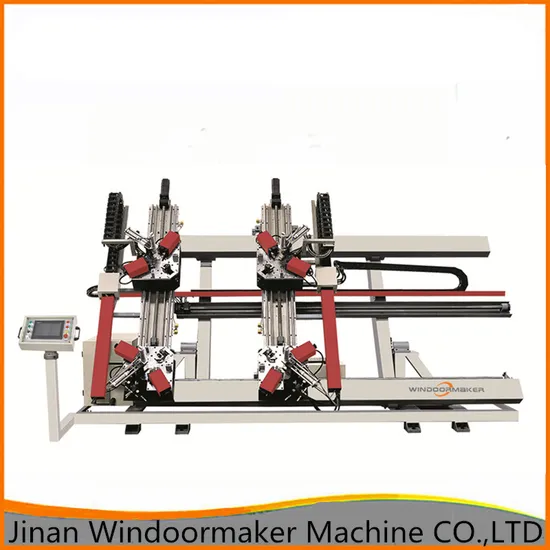

Aluminum Window Door Combining Machine Aluminium Four Head CNC Corner Crimping Machine Window Frame Making Machine

Product Description

Product Description
Specification:
Used for corner crimping of aluminum window and door and curtain wall sash, four corners can be finished in one cycle. In the whole working cycle with Schnider CNC system driving the four heads, thus can achieve the high automatic and intelligent operation, automatic fabricating size control. The head moving adopt linear bearing, with high accuracy and stability. Four corner auto pre-clamping by moment supervising of servo-control system. Convenient adjustment of the crimp tooling can be met different profile requirement. Imported CNC system with a humanized design of human -machine interface, easy to operate and reliable operation. Technical Parameter:

Power supply	Made to order
Hydralic gearbox motor power	7.5KW
Rate oil cylinder pressure	15Mpa
Oil tank capacity	60L
Air pressure	0.5~0.8Mpa
Air consumption	60L/min
Crimping pressure	15Mpa
Processing profile height	Max. 93mm
Travel size for crimping cylinder	50mm
Min frame size	480×480mm
Max frame size	1800×3000 mm
Dimension (LxWxH)	4700×2200×2500mm
Weight	1500kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
