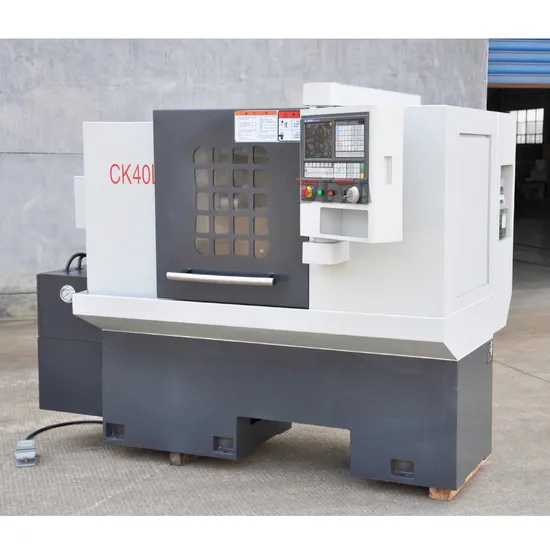

Gang Type Tool Post 3.7kw 52mm Spindle Flat Bed CNC Lathe Ck6140L

US$15,000.00

1-4 Sets

US$11,000.00

5+ Sets

Basic Info.

Model NO.

CK6140L

Type

Horizontal Lathe

Processing Accessory

Chuck CNC Lathe

Guide Rail

Horizontal Guide Rail

Tool Holder

Single-tool Holder CNC Lathe

Power Source

Electric

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Name

Flat Bed CNC Lathe Ck6140L

Model

Ck6140L

CNC Controller

GSK/Siemens/Fanuc CNC Controller

Max.Swing Over Bed

400mm

Max. Turning Length

300mm

Spindle Bore Diameter

52mm

Chuck

Manual Chuck

Tool Turret

4-Way Toolpost

Delivery Time

2 Month

Warranty Time

12 Months

Guideway

Linear Guideway

Main Motor

3.7kw Servo Motor

Voltage

380V

Transport Package

Wooden Case

Specification

300mm

Trademark

BETA

Origin

Shandong, China

Production Capacity

100 Sets Per Month

Product Description

Gang Type Tool Post 3.7kw 52mm Spindle Flat Bed CNC Lathe CK6140L
Standard accessories:
GSK980TDi CNC cnc controller
GSK servo motors for X and Z
GSK servo mian motor for spindle
Linear guide ways for X and Z
Lead screw for X and Z
Gang type tool post
Manual chuck
Lubrication and coolant system
Heat exchanger
Full cover
Tool box
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Pneumatic collect,
6-station turret

MODELS	CK6140L
Max swing over bed	Ф400mm
Max. turning dia. for axle parts with gang tools	Ф150mm
Max. turning length	300mm
Spindle nose	A2-5
Spindle bore	Ф52mm
Taper bore of spindle	M.T.NO.6
Steps of spindle speed (manual)	Stepless
Max.spindle speed	3000rpm
X-axis rapid feed	16m/min
Z-axis rapid feed	20m/min
X-axis travel	215mm
Z-axis travel	300mm
Min. input	0.001mm
Tool post type	Gang tools
Tool cross section	20×20mm
Round hole cutter holder size	Ф25mm
Main motor power	3.7kw
Coolant pump power	75w
Overall dimensions(L×W×H)	1700×1500×1600mm
Net weight	1700kg
