Mineral Water Bottle Equipment Machine Injection Machine

Product Description

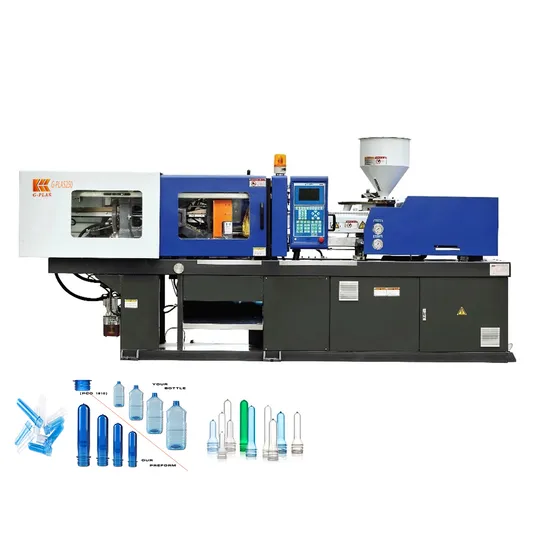

G-PLAS machinery do injection molding machine.
Servo Energy-saving Plastic Injection Moulding MachineIt is suitable for different kinds of plastic products. High quality and reasonable machine.We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 100 to 1800Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Description
Platen Drawings:
Parameters:

STYLE SPECIFICATION		G-PLAS/250
SCREW TYPE		A	B	C
Injection Unit
Screw diameter	mm	55	60	65
Screw L/D ratio	L/D	23	21	19.3
Shot volume(theoretical)	CM3	585	704	826
Injection weight(PS)	g	540	650	755
Injection rate	g/s	223	266	312
Injection pressure	MPA	202	170	145
Screw speed	rpm	220
Clamping Unit
Clamping force	KN	2500
Open stroke	mm	550
Space between tie-bars(W*H)	mm	580*580
Max mould height	mm	580
Min mould height	mm	200
Ejector stroke	mm	150
Ejector force	KN	70
Others
Max pump pressure	MPA	16
Pump Motor power	KW	30
Heating power	KW	18.3
Numbers of heating area	Segment	5+1
Machine dimension(L*W*H)	M	6.25*1.66*2.37
Oil tank cubage	L	386
Machine weight	TON	8

OUR products brand :

	Description	Brand
Electric Unit	Controller	EST/Techmation/KeQiang - CHINA KEBA - Austria
	Servo driver	INOVANCE/ DELTA - China
	Servo motor	Phase - Italy venture
	Air-switch	Simens - Germany
	Thermal relay	Simens - Germany
	AC Contactor	Siemens - Germany
	Photoelectric switch	SICK - Germany
	Siemens
	Transducer	JS/Fort - USA joint venture Novo - Germany
	Limited switch	Siemens - France
Hydraulic Unit	Internal gear pump	Sumitomo - Japan
	Hydraulic Valve	Yuken - Japan Rexroth - Germany
	Proportional Valve	HP - Taiwan
	Hy. motor (Injection)	Intermot - Italy venture
	Hy. motor (Adjustment)	Eaton - America
	Pressure sensor	Keller - Swiss
	Oil Seal	HALITE - UK
	Lubrication system	Chaorun - Japan joint venture
Mechanical Unit	Description
	Platen casting	GGG-50
	Toggle casting	GGG-50
	Tie bar	42CrMo4V
	Toggle pin	42CrMo4V
	Screw	34CrAlMo5(1.8507)
	Barrel	34CrAlMo5(1.8507)
	Nozzle	34CrAlMo5(1.8507)
	Screw tip	DIN1.2344
	Check ring	DIN1.2344
	Thrust ring	DIN1.2344

FAQ:
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks .
1.what material you will use (PP PE or PET ?)
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except TWO year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
By the way , Our company is about 110 km away from Shanghai(1.5 hour bus driving from shanghai airport) . Warmly welcome you to visit our factory at any time.

---
