Animal Feed Crushing Grains Wheat Corn Silage Machine

Product Description

Animal Feed Crushing Grains Wheat Corn Silage Machine

All our Hammer Mill Models :

Name	Model	Power(KW)	Capacity(T/H)
Hammer Mill	AST-ZW36A	22	1-3
	AST-ZW40A	37	3-5
	AST-ZW29C	55	6
	AST-ZW29C	75	8
	AST-ZW38C	90	10
	AST-ZW38C	110	12
	AST-ZW50C	132	16
	AST-ZW60C	160	18
	AST-ZW80C	185	20
	AST-ZW80C	200	25
	AST-ZW100C	220	28
	AST-ZW100C	250	32
Hammer Mill	AST-ZW60B	55	2
	AST-ZW60B	75	3.5
	AST-ZW80B	90	5
	AST-ZW80B	110	7
	AST-ZW100B	132	9
	AST-ZW120B	160	15

1. Animal Feed Crushing Grains Wheat Corn Silage Machine Description: It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .it's use for fine grinding . The design of overall base is high in structural strength and beautiful in appearance. Direct transmission and advanced falk flexible coupling are adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness . Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance . The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden . Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance . The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .
2.Animal Feed Crushing Grains Wheat Corn Silage Machine Technical Parameters :

B series hammer grinder

Model		AST-ZW60B		AST-ZW80B		AST-ZW100B	AST-ZW120B
Rotor diameter(mm)		660		660		660	660
Spindle speed(RPM)		2980		2980		2980	2980
Linear speed of hammers ( m/s)		78		78		78	78
Pulverizing room width (mm)		600		800		1000	1200
Hammers Qty ( Pcs)		112		128		144	156
Power( kw)		55	75	90	110	132	160
Normal Air Volume ( M3/h)	Rough crushing	42	46	55	61	80	100
	Fine crushing	55	60	72	78	100	130
Ordinary grinding output( t/h)		9	12	14	16	18	20
Fine grinding output(T/H)		2	3.5	4.5	6	8	10

C series grinder :

Model	AST-ZW-29C		AST-ZW-38C		AST-ZW-50C	AST-ZW-60C	AST-ZW-80C		AST-ZW-100C
Rotor diameter (mm)	1120		1120		1120	1120	1120		1120
Spindle speed(rpm)	1480		1480		1480	1480	1480		1480
Linear speed of hammers (m/s)	86.5		86.5		86.5	86.5	86.5		86.5
Pulverizing room width(mm)	290		380		500	600	800		1000
Number of hammers	48		64		96	112	128		192
Power(kw)	55	75	90	110	132	160	185	200	220	250
Normal Air Volume ( M3/min)	55	60	72	78	95	100	120	140	140	160

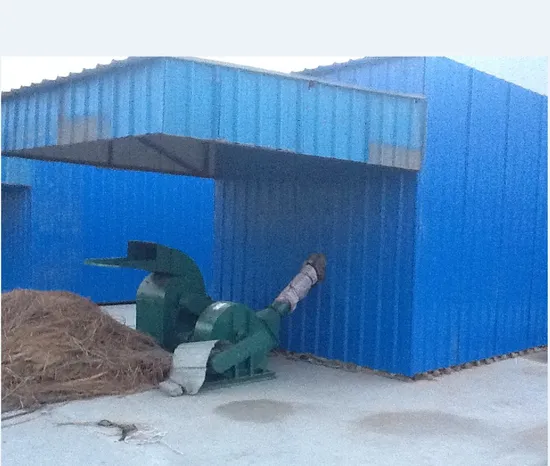

3. Animal Feed Crushing Grains Wheat Corn Silage Machine More Photos:
AST-ZW B series photos
C series hammer mill photo:
4. More Related Details Photos:
Any more information you need Animal Feed Crushing Grains Wheat Corn Silage Machine, please feel free to contact with us.
