6kw 8kw 12kw 20kw 30kw Dual Table Fiber Laser Cutting Machine Stainless Steel Galvanized Steel Aluminum Copper

Product Description

Detailed Photos

MAIN PARTS
Heavy Machine Frame with Thick Steel Pipe Welded	China Best Fiber Laser Generator
World Best Laser Cutting Head: Raytool	Ncstudio Absolute Value Servo Motor
Taiwan CSK Linear Guide	Japan Shimpo Reducer

Sample Presentation
Product Description
Applications
Applicable Industry:
Our Advanced 1500W Fiber Laser Cutter is expertly designed for the following top-tier industries: sheet metal processing, advertising production, kitchenware manufacturing, duct manufacturing, automobile, and shipbuilding. Experience the pinnacle of precision and manufacturing excellence.
Applicable Materials:
Our cutting-edge fiber laser cutter seamlessly handles a broad spectrum of materials including cold-rolled and galvanized sheets, carbon steel, stainless steel, aluminum, and copper sheets, delivering unrivaled precision and reliability.
Highlights:
1. Featuring a state-of-the-art autofocus cutting head, our machine eliminates the need for manual adjustments, significantly reducing the risk of errors or operational failures, ensuring flawless precision every time.
2. By harnessing advanced flying cutting technology, our laser cutter dramatically reduces drilling time by up to 90%, optimizing productivity and efficiency like never before.
3. The innovative non-contact auto-follow function is engineered to maintain optimal focal length, delivering impeccable cutting results with every use.
4. With enhanced drilling focal length capabilities, our machine allows separate settings for drilling and cutting focal lengths, elevating cutting accuracy to new heights.
5. Equipped with a professional, PC-based laser cutting controller, our system supports essential processes such as flying cutting, skipping, compensation, threading, micro-connections, pre-drilling, power-off memory, and more, all through a user-friendly interface.
6. Built upon a robust machine frame combining steel plate and steel pipe in mixed structural welding, and featuring an integral cast aluminum beam, our cutter undergoes post-weld heat treatment to effectively eliminate stress and enhance rigidity and machining accuracy.
7. Our fiber laser generator boasts high beam quality, brightness, and conversion rates, ensuring free, stable, and reliable operation with minimized costs and compact dimensions.
8. Designed with an XYZ axis dustproof safeguard, our cutter protects guide rails and ball screws from debris, maintaining peak operational performance and longevity.
9. Powered by precision-driven servo motors, our machine delivers high-speed, stable operations, with the Y-axis dual drive specifically engineered for high-thickness material cutting.
The innovative Y-axis dual drive system enhances cutting precision, effectively tackling high-thickness materials with superior performance.

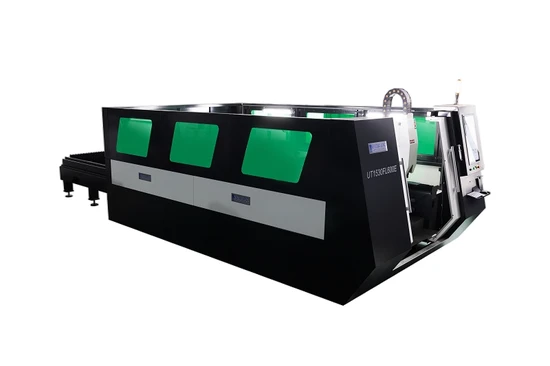

UT1530FL600E LASER CUTTING MACHINE
Working size	2000*6000mm
Table	Single Table
Machine size	3100*8500*2400 mm
System	Ncstudio with Original HP PC and original WIN10
Laser power	Max 6000W MFSC-6000C
Transmission system	Taiwan brand rack and pinion
Guide rail	Taiwan brand CSK
Laser Head	Raytools BM06G with auto focus
Air control	SMC, Japan
Electric parts	CHNT made in China
Working voltage	AC 380V, 50-60HZ, 3 phases
Cooling system	Teyu Water Chiller CWFL-6000ENS04
Servo Motor model	Ncstudio Absolute Value AC Servo Motor and driver 1500W
Max Travel Speed	80m per min
Laser type	Fiber laser
Laser wavelength	1070nm
X/Y/Z axis stoke	1500 /3000 / 300mm
X/Y axis positioning accuracy	±0.05mm/m
X/Y axis re-position accuracy	±0.03mm/m
Machine bed	Plate and tube welding
Working table max. loading	1500kgs

MFSC-1500X cut parameter
Material	Thickness (mm)	Speed Mm/min	Power W	Gass	Pressure Bar	Nozzle mm	Focus mm	Cut height mm
Carbon	1	60-80	6000	N2/Air	10	2.0 S	0	0.6
	2	40-45			12	2.0S	-0.5	0.5
	3	23-28			14	3.0S	-1.5	0.5
	4	15-20			14	3.0S	-3	0.5
	5	10-13			16	3.5S	-3.5	0.5
	6	7-9			18	3.5S	-4	0.5
	3	3.6-4.5	3000	O2	0.6	1.0 D	+6.5	0.6
	4	3.2-3.5	3000		0.6	1.0 D	+6.5	0.6
	5	2.6-3.2	3500		0.6	1.0 D	+6	0.6
	6	2.5-2.8	4000		0.6	1.0 D	+6	0.6
	8	2.2-2.5	5000		0.6	1.2D	+6	0.6
	10	2.0-2.2	6000		0.6	1.2D	+7	0.6
	12	1.8-2.0	6000		0.6	1.2D	+9	0.6
	14	1.4-1.7	6000		0.5	1.4D	+12	0.6
	16	0.9-1.2	2200		0.5	5.0D	+3.5	0.6
	18	0.7-1.0	2200		0.5	5.0D	+3.5	1.5
	20	0.6-0.8	2300		0.5	5.0D	+3.5	1.5
	22	0.55-0.65	2400		0.5	5.0D	+3.5	1.5
	25	0.4-0.6	6000		0.85	1.6S	13	0.4
Steel	1	60-80	6000	N2	10	2.0 S	0	0.6
	2	30-35			12	2.0 S	0	0.5
	3	20-24			12	3.0 S	-0.5	0.5
	4	13-16			12	3.0 S	-1	0.5
	5	9-12			14	3.0S	-1.5	0.5
	6	6.0-8.5			14	4.0S	-2	0.5
	8	3.0-4.8			16	4.0S	-4	0.5
	10	1.8-2.5			16	4.5S	-7.5	0.5
	12	1.5-1.8			18	4.5S	-8	0.5
	14	0.8-1.2			16	4.5S	-10	0.5
	16	0.7-0.95			18	4.5S	-11.5	0.5
	18	0.6-0.7			18	5.0S	-12.5	0.5
	20	0.5-0.6			18	5.0S	-13	0.5
	22	0.4-0.5			20	6.0S	-13	0.5
Aluminum	1	60-80	6000	N2	10	2.0 S	0	0.6
	2	30-45			10	2.0 S	-0.5	0.5
	3	20-28			14	3.0S	-1	0.5
	4	12-15			14	3.0 S	-1.5	0.5
	5	6-8			15	3.0S	-2	0.5
	6	4-5			16	4.0S	-2.5	0.5
	8	3.0-3.5			16	4.0S	-2.5	0.5
	10	2.0-2.5			18	4.0S	-3	0.5
	12	1.0-1.3			18	4.0S	-4	0.5
	14	0.8-1.1			20	5.0S	-5	0.5
	16	0.5-0.8			20	5.0S	-7	0.5
	18	0.4-0.6			25	5.0S	-9	0.5
	20	0.4-0.5			25	5.0S	-10	0.5
Brass	1	40-50	6000	N2	10	2.0S	0	0.6
	2	20-25			12	2.0S	-0.5	0.5
	3	8.0-10			12	3.0 S	-1	0.5
	4	6.5-7.5			14	3.0S	-1.5	0.5
	5	5.5-6.5			14	4.0S	-2	0.5
	6	3.5-4.5			16	4.0S	-2	0.5
	8	1.5-1.8			16	4.0S	-3	0.5
	10	0.8-1			16	4.0S	-3	0.5
	12	0.6-0.7			18	5.0S	-7	0.5
	16	0.3-0.4			20	5.0S	-9	0.5
	20	0.1-0.2			20	5.0S	-10	0.5
Copper	1	30-35	6000	O2	10	3.0S	-1	0.5
	2	12-15			10	3.0S	-1	0.5
	3	7.0-9.0			12	3.0S	-2	0.5
	4	6.0-7.0			12	3.5S	-3	0.5
	5	5.0-6.0			13	4.5S	-4	0.5
	6	2.5-3.5			14	5.0S	-5	0.5
	8	1.5-2.0			14	5.0S	-5	0.5
