Online Infrared Pyrometer for Metal Surface Measurement

Product Description

Online Infrared Pyrometer for Metal surface measurement
Main Features: √ Compact design with bus-compatible RS485 interface √ Digital signal transformation for high measurement accurancy √ Different temperature and spectral ranges for various industrial applications √ Temperature ranges from -25°C to 3000°C √ Aluminium alloy housing IP65 √ Optional: water cooling jacket The IT-8 series Infrared Pyrometer can provide excellent temperature measurement with a compact & integrated sensor. This series can measure target temperatures from 50°C to 3000°C, and the D:S reaches 320:1, the smallest measuring spot size is 1.5mm. The inner electronics are protected by an aluminum alloy housing, which allows the pyrometer to work in ambient temperatures up to 60°C without cooling system. With 0-5V/ 4~20mA output, IT-8 pyrometer can be directly connected with standard digital display, large LED screen display and PLC etc.. We can also provide RS485 interface, which helps to make a networking for lots of online IR pyrometers. This will be convenient for integrating it into controlling system for continuous data monitoring. IT-8 optical pyrometer is a temperature sensor with high performance and high accuracy. It can satisfy almost all demands of non-contact temperature measurement. This pyrometer is a best choice for industrial temperature measurement more than 2000 degrees.

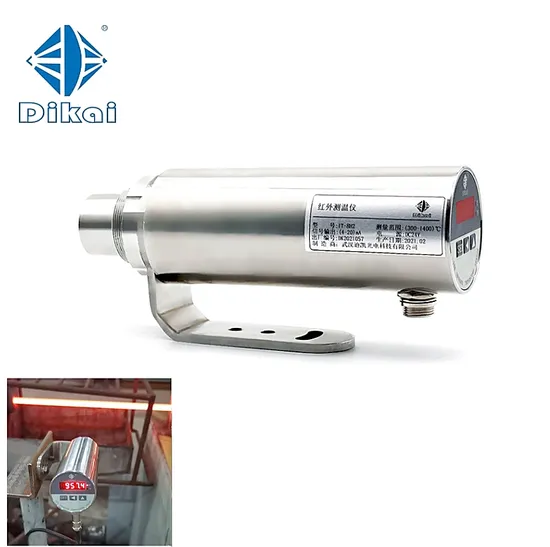

Detailed Photos
Product Parameters

Model	IT-8H1	IT-8H2	IT-8H3	IT-8H4
Temperature range (adjustable as required)	100-800ºC	300-1400ºC	800-2600ºC	1000-3000ºC
Detector	InGaAs 0.7-1.7µm	InGaAs 0.7-1.7µm	Si 0.4-1.1μm	Si 0.4-1.1μm
Accuracy	0.5%
Repeatability	0.2%
Temperature Resolution	0.5ºC
Response time	≤5ms
Distance Coefficient	320:1
Minimum Spot size	1.5 mm
Analog Output	0-20mA /4-20mA , 0-5V
Digital Output	RS485
Power Supply	24VDC ± 20%, 500mA
Anti Disturbance	JB/T9233.11-1999
Thermal Shock	GB/T 2423.1,GB/ T2423.2
Weight	1.5kgs

Applications
Company Profile
FAQ
1) Are you a trading company or a manufacture factory?
We are the direct Factory, but we have international trading ability. We offer high quality products with proper prices. 2) How long has your company been working on Infrared Thermometers? Over 15 years experience in this field. 3) What payment terms can you accept? Our company can accept T/T, L/C, Western Union, ****** trade assurance and Paypal payment. 4) After an order is placed, what is the delivery time? Normally within 7 days after payment received. 5) Can your company accept customization? Yes, it is no problem, we have our own R&D team , can research and develop customized model as you require. 6) What's the MOQ of your product? The MOQ is one pc, but our prices base on the quantity. If you need more, the price will be cheaper. 7) How to make an order ? You can tell us the temperature range you need or where to use the thermometer, our technician will suggest the most suitable model according to your needs. After paying to our account, we will arrange the production and delivery ASAP. Please feel free to Contact us : Sales: Estelle Lv

---
