HDMI 4K Hybrid Matrix Switcher Adapter HDMI to RCA

Product Description

Product Overview

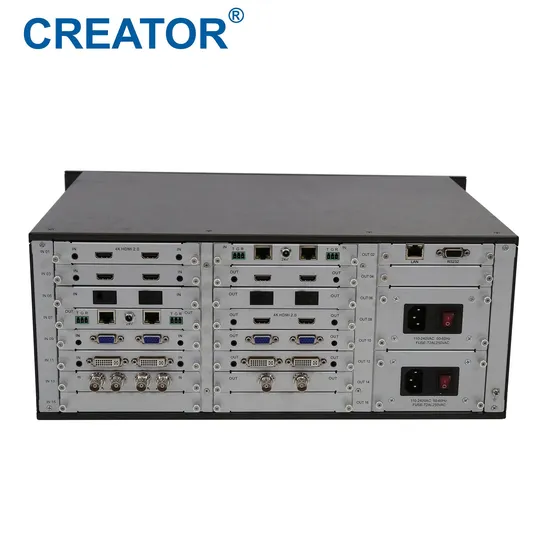

MID-MAX series modular multi-format mixed seamless switching matrix is a high performance video signal switching equipment. It supports up to 8~140 inputs, 8~140 outputs with many kinds of daughter cards. This product supports multiple video formats input and output. And it supports video wall as well.
Multi-format matrix using the daughter cards structure, flexible and convenient installation. The input/output port support: HDbaseT, SDI, HDMI, VGA, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS).With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc.
This can provide one-stop solution for mulitiple types of visual signals and control signals switching and processing in various industries, especially for Broadcasting and Television Projects, Multimedia Meeting Rooms, Big Display Projects, TV Education, Smart Traffic Management Centers, and Command Center, etc.

Features
♦ Maximum resolution of 1920 x 1080@60Hz (2K cards); 3840x2160@60Hz(4K cards);
♦ Support HDMI 2.0, HDCP 2.2, YUV 4:4:4, audio 7.1 CH;
♦ ♦ Support video wall processing function;
♦ HDBaseT cards support POC;
♦ Full digital switching: real seamless switching for all types of output cards.
♦ Redundant power supply(CR-MID MAX0808/1616 is with single module, and double modules optional. CR-MID MAX3636 and above are with double power modules);
♦ Support Seamless switching;
♦ Support up to 8~140 inputs and 8~140 outputs;
♦ Input/Output port: HDbaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS);
♦ Control interface: RS232,Web-based Ethernet/LAN;
♦ PC software to facilitate remote control, real-time display the input and output status;
♦ Scalar inside, output resolution control available;
♦ Character overlay function: Font / color / size control available.
Specifications

System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
