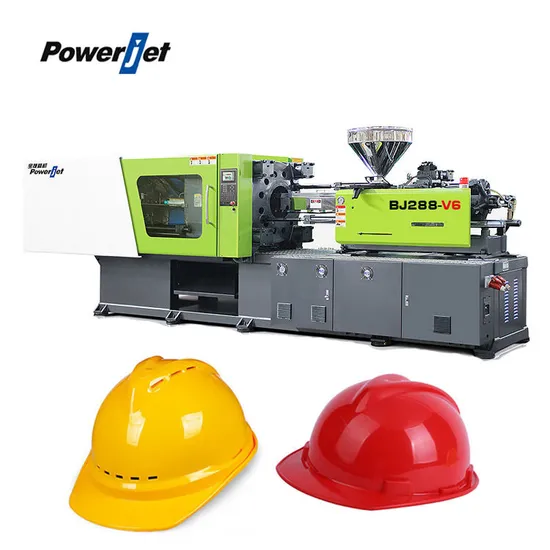

Powerjet Industrial Work Plastic Motorcycle Safety Helmet Making ABS Moulding Injection Molding Machine Price

Product Description

Products Description
CLAMPING UNIT
Center-pressing toggle structure design, high clamping force, high rigidity, low deformation, production fast and stable.T-slot platen, convenient and fast mould change.
S6 Servo motor
With the adoption of servo control system, the injection pressure & speed 15 under closed loop controlled, and the stability and repeatability can be achieved.
V6 Variable Pump
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%. The economic efficiency is high.
Comparing with the hydraulic machine, S6 series can save more 50% of the power. Comparing with full electrical machine, energy saving is more obviously seen during pressure hold & cooling stage.
Imported top grade hydraulic components
High precision oil filter and full flow bypass oil filter
Screw is driven by low speed & big torque hydraulic motor
Finite element analysis is used on the structure of mould plates So that the structure of mould plate
is more logical,stronger and higher fatigue resistance.
Automatic dosing lubrication system guarantees mould clamping mechanism to be more stable and reliable.

High precision electric meter is used to control position. The control precision is +0.1mm.
Mechanical and double electric interlock protection devices guarantee the safety of the operators. (Machine above BJ400 is equipped with hydraulic safety device. )

Wear resistant hard chromium plated tie bar is featured with high-tensile and high strength.
Hydraulic motor with centering gear mould adjusting system makes mould adjusting system to be better.
Product Paramenters

DESCRIPTION			UNIT	BJ288-V6/S6
CLAMPING UNIT	Clamping force	KN	2880
		Opening stroke	mm	550
		Max.datlight	mm	1160
		Platen size	mm	890*890
		Space between bars	mm	610*610
		Max.mold height	mm	610
		Min.mold height	mm	280
		Ejector stroke	mm	145
		Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	60
		Screw L/D Ratio	L/D	21
		Injection Pressure	MPa	169
		Shot volume	cm3	791
		Screw stroke	mm	280
		Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	22/41
		Heater power	kW	13.8

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
