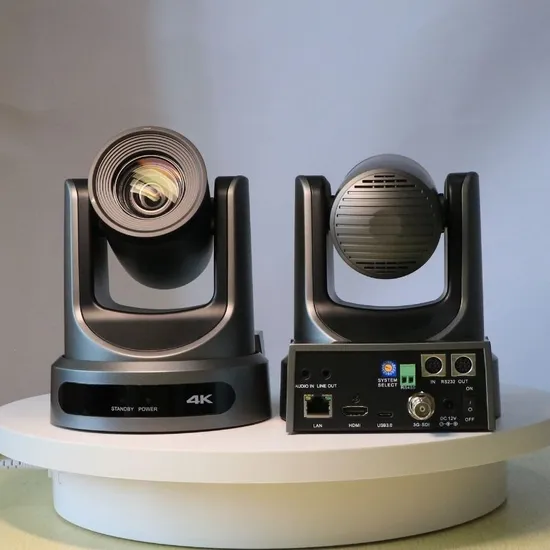

1080P60 Ptzoptic 12X 20X 30X PTZ Camera for Live Streaming and Broadcasting

Product Description

PTZOptic HDMI SDI IP Output NDI 20X Zoom NDI Video Conference PTZ Camera
Features:
Private Tooling design High Definition PTZ camera Fast and smooth video handling Power ON-OFF switch Work & Standby LED indicator Speed Match Auto/Manual focus/brightness/WB RS-232C/VISCA Protocol Lens/Dome OSD Boundary scanning Standby & wakeup status Swap video format DVI/HDMI Video output
Performance:
1920x1080pixels progressive @30fps 30x optical, 12x digital zoom F=4.3-129mmF1.6-4.7 HOV 63.7 degree 1/2.8" Type Exmor CMOS 2.14 Mega Pixel Sensor Pan ±177.5 degree Tilt +90 degree, -45degree 64 preset positions 4 cruise lines DC 12V, 2A Dimension:
L 250mm x W 140mm x H154mm N. Weight: 2.6kgs G. Weight: 4.8kgs
Installation:
Desktop Ceiling mount Standard Tripod accessory Specification of sd camera :

Model No.		AVL-HD653
Image Sensor	Image Sensor	1/2.7" HD Color CMOS
	Effective Pix	2.1 Megapixel
	Min. Illumination	0.5Lux at F2.0
	White balance	Auto/Manual
	Gain control	Auto/Manual
	Backlight compensation	On/Off
	Shutter speed	1/1 - 1/10,000S
	S/N ratio	>50db
Lens	Focus	f=3-10mm
	Iris	Auto/Manual
	Lens	3x zoom
	Horizontal view angle	70°
Video output		USB 2.0
Signal system		1080P@29 720P@31 YUY2:1080P@5,720P@15
Control terminal		EIA/RS232C,EIA/RS485(Bidirectional) USB
Control Protocol		VISCA,PELCO-D
baud rate		9600/38400bps
patrol line		4 cruise sequence
preset position		64 preset positions
Speed Match		Pan/Tilt movement speed depends on camera module zoom in/out
OSD Menu		Access to OSD Menu and adjust camera module parameters
Image auto flp		Support Horizontal/Vertical image flip
Pan movement speed		1-60°/Second
Tilt movement speed		1-60°/Second
Pan movement range		Pan: 0-360°
Tilt movement range		Up: 90°, Down: 45°
Pan scanning automatically		Support Pan scanning automatically
Boundary scanning		0-359°(programmable)
Remote controller		IR Wireless Remote controller P/T/Z
Power supply		DC12V,2A
Work Temperature		0-50ºC
Humidity		0-95%RH
LxWxH		124mm x 120mm x 145mm
Weight		800g

Accessories kits in package:
1x HD 830-DSY Video Camera 1x DC 12V/2A Power Adaptor 1x User's manual 1x3m USB 3.0 Cable 1x Installation brackets & screws 1xIR Remote Controller
Case story:
About AVLink Video Conference Solution: Shenzhen AVLink technology co., ltd, based on Guangming, Shenzhen, China. Leader of Chinese Conference System.
Shenzhen AVLink is a professional AV integration and conference solution supplier, specialized in high-definition video PTZ camera and PTZ keyboard controller over 10 years. Our production series from indoor camera such as High-Definition video conferencing PTZ camera, MCU, All-in-one camera terminal, HDBaseT, tracking camera 4K camera to Outdoor camera. range from 5x, 10x, 20x, to 30x optical.
We offer interactive whiteboard from 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, and 86inch, even up to 98inch and 100inch.

Which Certificate AVLink Has? Each product meets CE Certificate: CE (EN62368-1:2014+A11:2017) (EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN61000-3-3:2013), and RoHs(2011/65/EU; 2015/863/EU), ROHS(IEC62321-1), IP65(EN60529)
Which Kind of Service You Will Get?
Provide free marketing material to distributor Get the affordable price of hot item PTZoptics camera Enjoy 7/24 after-sales service Ask Us Anything(FAQ)1.Q: Are you Manufacturer or Trading company?A: Manufacturer with more than 10 years experience.2. Q: What's your main products?A: We have been focusing on the production of Video conference camera and interactive whiteboard for 10 years.3.Q: Can you do OEM / ODM for us?A: Of cause. Let us know what you need, we'll do it for you.4. Q: Can we visit your factory?A: Yes, warmly welcome to visit our factory anytime.
5. Q: What is your delivery time?A: For samples, 1~3 days delivery for indoor dynamic screen, 15~20 dayS for outdoor digital signage
For bulk order, it depends on your quantity and requirements on OEM / ODM.
6. Can I be your distributor?
For distributor issue, please confirm with our director. Send inquiry now!

---
