6kw CNC Aluminum Plate Steel Metal Tube Fiber Laser Cutting Machine with "0" Tail

Product Description

Product Description

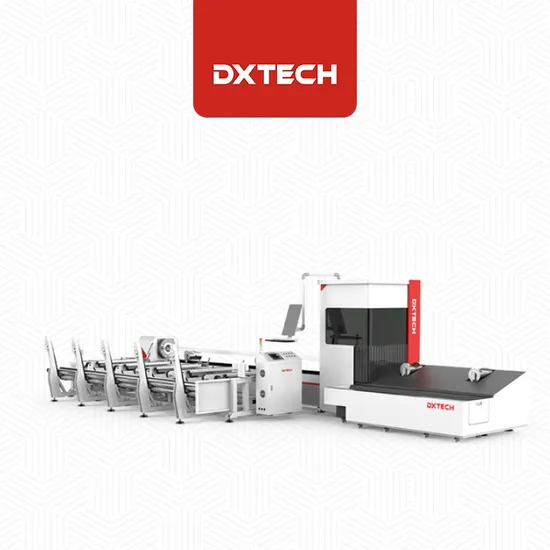

DXTECH double chuck automatic loading and unloading pipe laser cutting machine is specially designed for cutting pipes in large quantities. It can quickly cut round, square, oval, rectangular, and other special-shaped pipes to meet different pipe-cutting requirements. The concentrated operation, flexible processing, automatic feeding, convenient and quick pneumatic chuck feeding, and no need for manual operation.

Features
1.Fully automatic without manual work
This model is a fully automatic feeding pipe laser cutting machine. The loading and unloading mechanism is added to the ordinary pipe laser cutting machine, which can realize the automatic cutting of batches of pipes without human intervention.
2.High-efficiency "0" tailings
The humanized design of the whole machine makes the best use of raw materials while improving cutting efficiency reducing production costs, and achieving "0" tailings.
3.Materials are widely used
It is suitable for cutting round pipes, square pipes, rectangular pipes, waste pipes, angle steel, channel steel, I-beam, and other special-shaped metal pipes. Processing method: pipe cutting
Product Parameters

Model	DXTECH-TLA6160/TLA9160	DXTECH-TLA6220/TLA9220	DXTECH-TLA6350/TLA9350
Max. tube length	6.5m/9.2m	6.5m/9.2m	6.5m/9.2m
Laser Output Power	1000W-4000W	1000W-4000W	1000W-4000W
Tube shape	Round/square/rectangular	Round/square/rectangular	Round/square/rectangular
Max. tube weight	100kg 16kg/m	200kg 30kg/m	500kg 83kg/m
Chuck	Two pneumatic chucks	Two pneumatic chucks	Two pneumatic chucks
Max. chuck rotating speed	130r/min	130r/min	140r/min
Laser	Multiple options	Multiple options	Multiple options
Clamping range	Φ10-Φ160mm	Φ20-Φ220mm	Φ20-Φ350mm

Cutting materials and thickness

Carbon steel	0.4-6mm	0.4-10mm	0.4-12mm	0.4-14mm	0.4-16mm	0.4-20mm
Stainless steel	0.4-3mm	0.4-4mm	0.4-5mm	0.4-6mm	0.4-8mm	0.4-10mm
Aluminum	0.4-2mm	0.4-3mm	0.4-3mm	0.4-4mm	0.4-6mm	0.4-8mm
Brass			0.4-3mm	0.4-3mm	0.4-3mm	0.4-8mm
Laser power	500w	750w	1000w	1500w	2000w	3000w

---
