• Support for Win 7, Win 10 system.
• Intel® Core™ i5-8250U/i7-8550U, greatly improved performance.
• The fuselage is equipped with dual battery design, and the endurance is increased to 6-8 hours.
• IP65 high protection level, in accordance with MIL-STD-810G.
• Support GPS, Optional Beidou, more accurate positioning.
• Support 1920x1080 FHD, optional with Corning gorilla screen and sunshine visual screen.
• Support rich expansion slot and fingerprint design, can be applied to various complex industry needs and expand demand.

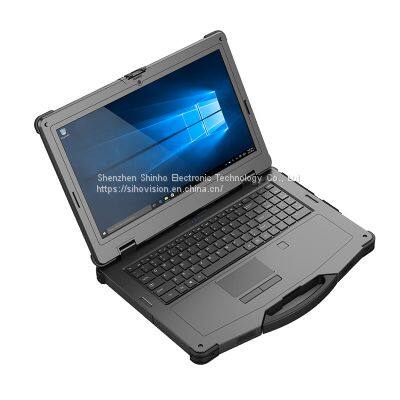

| Model:R-X15NFU |
| PC |
| CPU | Intel® Core™ i5-8250U/i7-8550U |
| OS | Windows 7/Windows 10 |
| RAM | 8GB/16GB |
| ROM | 256GB/512GB |
| Network connections |
| WIFI | 2.4G+5.8G dual frequency, WIFI 802.11(a/b/g/n/ac) |
| Bluetooth | BT4.2 (BLE) class1 transmission distance：10m |
| 3G/4G | LTE FDD: B1/B3/B5/B7/B8/B20/B28A |
| LTE TDD: B38/B40/B41 |
| WCDMA: B1/B2/B5/B8 |
| GSM: 850/900/1800/1900MHz |
| Basic parameters |
| Dimension | 397*271*37 mm |
| Weight | device unit 3300g |
| Device Color | black |
| LCD | 15.6 inch IPS 16:9, 1920*1080 |
| Touch Panel | 10points Capacitive, G+G, Corning Gorilla Glass |
| Camera | Front 2.0MP |
| I/O | HDMI x 1, POGO 5pin x 1, |
| USB 2.0 x 1, USB 3.0 x 3, |
| SIM Card x 1, SD Card x 1, |
| DB9 RS232 × 1, RJ45 × 2, |
| Φ3.5mm standard earphone jack x 1, |
| DC 19V 3.42A x 1 |
| Power | AC100V ~ 240V, output DC 19V/3.42A/65W |
| GPS | Support GPS (Optional Beidou) |
| Battery (Built-in) |
| Capacity | 7.4V/1750mAh |
| Type | Built in Li_polyment,battery loadable |
| Endurance | 0.5hrs (Default 50% volume, default 200 nit, Play 720P HD video) |
| Battery (Pluggable) |
| Capacity | 7.4V/6300mAh |
| Type | Li_polyment, removeable battery |
| Endurance | 8 hrs (Default 50% volume, default 200 nit, Play 720P HD video) |
| Reliability |
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP65 |
| Optional modules |
| Fingerprint | SPI fingerprint (power on login) |
| NFC | NXP NFC 13.56MHz, Support ISO/IEC, 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
