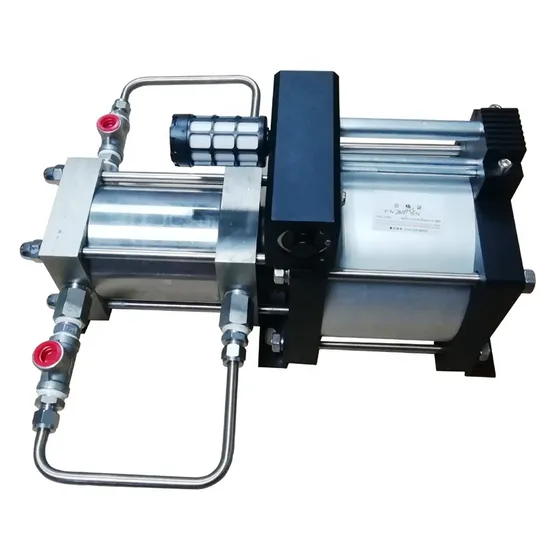

High Pressure Oxygen Gas Booster Pump

Product Description

Product Description


CW-GB-Air-Driven Gas Boosters
1. The CW-GB series gas booster pump is made of aluminum alloy and stainless steel. It can use 17-4PH, 15-5PH, 440C, nickel-based alloy, Hastelloy and other materials to meet special media. All seals are all imported products with a maximum drive pressure of 8.3 Bar.
2. CW-GB series gas booster pump products are mainly used in various occasions where the pressure of the gas source is high, the output pressure is required, and the flow rate is not required.
3. Some models can be used to pressurize special gases or to evacuate.
4. The drive piston diameter of this series is 160mm, the booster pump drive gas inlet is G1/2", the drive air pressure is ≤8.3Bar. CW-GB25, CW-GB40, CW-GB60, CW-GB100 high pressure pump pump heads have exhaust cooling function.

CW-GB series air booster pump
Technical Data Sheet Pa=driving pressure Pi=input pressure Po=output pressure
Model	Ratio	Drive size(MM)	Min gas	Max gas outlet	Gas outlet formula	IN	OUT	Max flow
			inlet(Bar)	Po(Bar)	Po=			standard(NL/Min)
CW-GB02	2.5:1	100	0.2	16.6	2Pa	PT1/2"	PT1/2"	522@Pi=7
CW-GB04	4:01	80	1.2	33.2	4Pa	PT3/8"	PT3/8"	354@Pi=7
CW-GB05T	5:01	80	1.7	41.5	4Pa+Pi	PT1/2"	PT1/2"	572@Pi=7
CW-GB07	7:01	63	3.4	58.1	7Pa	PT3/8"	PT3/8"	252@Pi=7
CW-GB08T	8:01	63	3.4	66.4	7Pa+Pi	PT1/2"	PT1/2"	362@Pi=7
CW-GB10	10:01	50	6.5	83	10Pa	PT3/8"	PT3/8"	196@Pi=7
CW-GB15	15:01	40	8.1	124.5	15Pa	PT3/8"	PT3/8"	164@Pi=10
CW-GB25	25:01:00	32	15	207.5	25Pa	PT1/4"	PT1/4"	114@Pi=20
CW-GB30	32:01:00	28	18	265.6	32Pa	PT1/4"	PT1/4"	91@Pi=20
CW-GB40	40:01:00	25	25	332	40Pa	PT1/4"	PT1/4"	156@Pi=40
CW-GB60	60:01:00	20	32	498	60Pa	PT1/4"	PT1/4"	112@Pi=40
CW-GB100	100:01:00	16	40	830	100Pa	PT1/4"	PT1/4"	85@Pi=40
CW-GB130	130:01:00	14	45	900	130Pa	PT1/4"	PT1/4"	28@Pi=40
Based on static pressure, the air consumption is 1m³ when the air pressure is 7Bar.
@ represents a condition: for example:100@Pi=7, it represents the flow rate is 100NL/min
when the input pressure is 7Bar

Detailed Photos


Air Driven Gas Booster Pump Features:
1. Safety Operation: Use air driving, no electric arc and spark, suitable for the place with flammable and explosive gas;
2. Convenient to Use: Without any power supply, use the compressed air as the power source to pressurize the gas to
make the outlet pressure reach N times pressure of the inlet pressure.
3. Energy Saving: When the outlet pressure reaches the preset pressure value, the air booster valve will automatically
stop working. When the outlet pressure is lower than the preset pressure value, it will automatically add the pressure
and keep the pressure constant. No extra energy will be consumed when holding the pressure;
4. Easy Adjustment: Output pressure can be adjust by the driving pressure, pressure is infinitely adjustable;
5. Booster pump service life is long, natural cooling, without cooling system.
6. Widely Application: Working medium can be air, hydrogen, oxygen, nitrogen, methane, natural gas and other special gases;
7. Simple Maintenance: It has small volume, light weight, simple operation and maintenance, easy maintenance, etc.
