2023 Lower Price High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm98

US$18,000.00-56,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

HXM98

Type

Plastic Injection Molding Machine

Structure

Horizontal

Plastic Type

PS,ABS,PP,PE,HDPE,PA,EVA

Plasticizing Way

Screw Type

Clamping Way

Hydraulic & Mechanical

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Energy Saving

Servo Energy Saving

After Sales Service

Engineers Aviable to Service Machine

Voltage

380V/50Hz,According to Countries

Showroom Locate

Malaysia,Russia,Turkey,Uzbekistan

Condition

New

Injection Weight

140g, PS

Space Between Tie Bar

360X340

Machine Weight

2.7 Ton

Transport Package

Standard Package

Specification

4.16*1.15*1.82 M

Trademark

Highsun

Origin

China

HS Code

8477101090

Production Capacity

7000 Sets / Year

Product Description

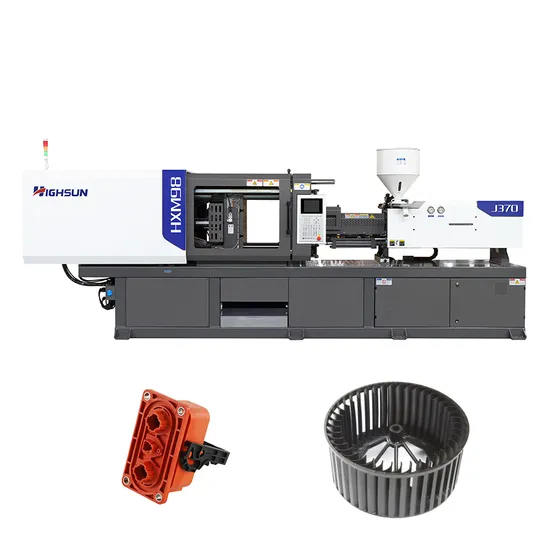

1.Picture

MODEL:HXM98
TECHNICAL PARAMETER TABLE			A	B	C	D
INJECTION UNIT	SCREW DIAMETER	mm	32	35	38	40
	SCREW L/D RATIO	L/D	24	22	20.2	19.2
	INJECTION CAPACITY IN THEORY	cm3	128	154	181	200
	INJECTION WEIGHT(PS)	g	116	140	164	182
	INJECTION WEIGHT(PS)	oz	4.0	4.9	5.7	6.4
	INJECTION PRESSURE	MPa	249	208	176	159
	INJECTION RATE	g/s	71	85	101	111
	PLASTICIZING CAPACITY	g/s	10	11	13	17
	SCREW SPEED	rpm	240
CLAMPING UNIT	CLAMPING FORCE	KN	980
	MOVING MOULD-PLATE STROKE	mm	315
	MAX. MOULD HEIGHT	mm	390
	MIN. MOULD HEIGHT	mm	150
	SPACE BETWEEN TIE-BARS (W×H)	mm	360x340
	HYDRAULIC EJECTOR FORCE	mm	45
	HYDRAULIC EJECTOR STROKE	KN	100
	EJECTOR NUMBER	n	5
OTHERS	PUMP PRESSURE	MPa	16
	MOTOR /DRIVING POWER	KW	11/11
	HEATING CAPACITY	KW	8.2
	MACHINE DIMENSION (L×W×H)	m	4.16x1.15x1.82
	MACHINE WEIGHT	t	2.7
	OIL TANK CAPACITY	L	203

2. Product Produced by Injection Molding Machine
3. Factory
4. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.
