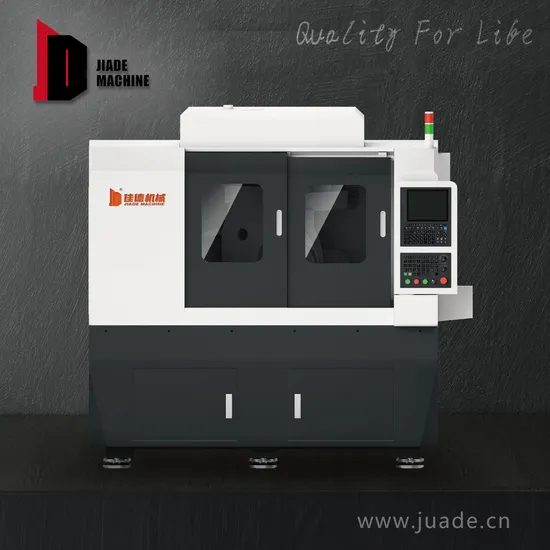

High Precision CNC Automatic Flute Grinder

Product Description

Product Description
CNC automatic Flute grinding machine can be convenient debugged and simple operated, one worker operate multiple machines, compare to some domestic similar products, it can save about 30% electricity consumption, save 30% grinding wheel consumption, and can improve the output. Equipped with the tool grinding software independently developed by Jiade Machinery, it can automatically correct the grinding wheel and grind the bit groove.

Machine Function
Product Parameters

Model	MGX4/CNC Flute Grinding Machine Model NO.MGX4
Tool size	3mm-13mm
Machine construction	Single column
Axis of motion	X-Axis:140mm
	Y-Axis:270mm
	Z-Axis:60mm
	A-Axis:360°
Tool length	205mm
Grind wheel diameter	Inner203mm Outter355mmThickness3-13mm
Spindle type	Mechanical spindle
Drive system	Pin roller lead screw,direct drive
Electrical power	10KVA/20KVA
CNC data	700 bus CNC.Hiqh-speed SSD MECHATROLINK protocol ,NXP-Rt1176M7 main controller
Machine body	High-performance cast iron
Machine size	Length:1750mm
	Width:1725mm
	Height:1780mm
	Weight:2000kg

Detailed Photos
Quality Control

Company Profile

---
