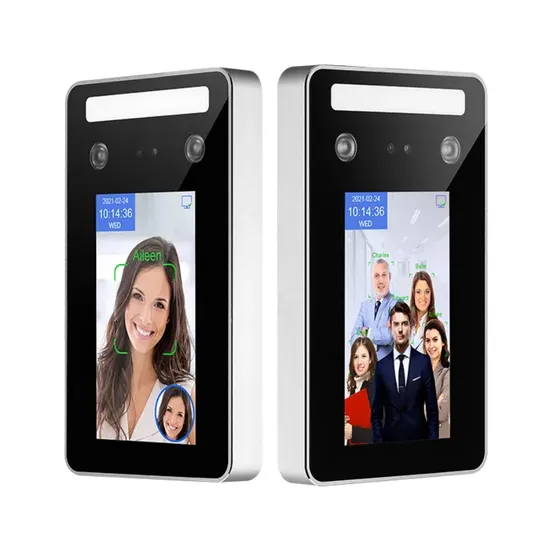

IP65 Waterproof Cloud Software Face Recognition Access Time Recording School Attendance System Access Control

US$114.00

1-49 Pieces

US$107.00

50+ Pieces

Basic Info.

Model NO.

QN-AI01

Clock

With Clock

Voice Service

With Voice Service

Facial Capacity

5000

Communication Interface

RS485, RS232, USB, TCP/IP

Screen Size

4.3 Inch

Fingerprint Capacity

10000

Card Capacity

5000

Recognition Distance

0.5-2.5 Meters

Transport Package

Carton

Specification

187.5x87.5x26mm

Trademark

QINIU/ODM

Origin

China(Mainland)

Production Capacity

5000

Packaging & Delivery

Package Size

28.00cm * 20.00cm * 5.00cm

Package Gross Weight

0.600kg

Product Description

IP65 Waterproof Cloud Software Face Recognition Access Time Recording School Attendance System Access control Product Description Model Specification: Face Recognition Machines Features
1. Support multi person face recognition with 5 persons at same time (Single person or multi person recognition are selectable
2. Support WDR (wide dynamic range), with good performance. It can be detected under a strong light, dark light and backlight environment
3. Support mask detection (Choose Yes/No in the menu)
4. Support capture stranger's face if he appears in the camera
5. Display user enrolled photo when verified face.
6. Support set face recognition distance: close (around 0.8m), middle (around 1.5m), far (around 2~3 meters)
7. Support lock screen, after locking screen, user have to touch the screen to active the machine, then do face recognition. If not touch the screen, even if the user stands in front of machine it not recognizes face.
8. Support match in server.
9. Waterproof rating is IP65 which suitable for outdoor installation on turnstile Detailed Photos

Screen	5.0 Inch,HD 720*1280, Capacitive Touch Screen
Keypad	Touch keypad
Operation system	LINUX 3.10
CPUNPU	Quad-core ARM Cortex-A7@1.2GHz,600G (0.6T)
RAM	1GB DDR3
ROM	eMMC Flash 8GB
Binocular camera	200W Colorful WDR+200W Infrared live camera
Logs capacity	500000
Face Registration	Local operation: Enroll face with machine, import user photo with U diskSoftware operation: Import user photo to software, capture user photo with camera
Verification	Dynamic face recognition, password,ID/lC card optional
Face capacity	50000
Card Capacity	50000 ID Card Standard, IC Card Optional
Password Capacity	50000
Face Recognition Accuracy	99.70%
Recognition Speed	s02s, support single user/multi user(at most 5 users) recognition at same time
Recognition Distance	0.5-2.5 meters (0.5-1.5 meters with live face recognition on)
Prevent Photo	Dual camera anti-counterfeiting, prevent recognition with photo/video
Principle of Identification	Face algorithm technology of multi-task cascaded convolutional neural network based onvideo stream for dynamic face detection, tracking and recognition
WDR	Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight
USB	USB2.0 x 1 ,Support U disk import/export data
Power supply	DC12V interface x 1
Speaker Interface	Reserved for extended Speaker Interface
Network Communication	TCP/IP,Support C/S LAN communication, Wfi (optional)
Free Attendance software	Support exporting excel attendance report with U disk
Shift	Support shift setting and importing shift schedule with U disk
Management Software	Support PC software to manage data through network connection with equipment
Access Control Function	Door unclosed alarm,forced door opening alarm, alarm linkage and output, one set of door opening signals.one set of alarm signals, time permission control, cannect external access control reader.Wiegand 26/34 output
Environmental adaptability	Dark enviroment: LED Soft light automatic fill light (Automatic control according to ambient light)Ambient light adaptation range: 0-50000Lux
Multi language	English, Spanish,Arabic, Thai, Farsi, Portuguese, French, ltalian, Japanese, Korean, etc
Broadcase and ring	Support display name, voice broadcase name, builtin bell ring
Automatic fill lightWorking Current	Support infrared fill light, the white fill light automatically lights up when face is captured in dark lightstand-by current: 310mA , Working current: 520mA
QR Code Scanner	Support
Working Voltage	DC12V
Installation Way	Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand
Device Dimension	185x110x20mm
Color box dimension	257x171x90mm

Company Profile Hebei Qiniu Machinery Equipment Co., Ltd Our company has experienced significant growth and development since its establishment. We have focused on expanding our expertise in various industries, including mechanical equipment, auto parts, electronic products, electronic placement, hardware, and daily products. Through continuous research and development efforts, we have been able to meet the evolving needs of the market and provide innovative solutions.International Trade Planning:As part of our growth strategy, we have actively engaged in international trade to expand our global reach. We have established strong partnerships and distribution networks in different regions, enabling us to effectively market and sell our products worldwide. Our team of international trade experts is well-versed in the complexities of global trade regulations and can provide seamless support for import and export activities.
Certifications
Packaging & Shipping
FAQ Q: Do you accept OEM or ODM?
A: Yes, we accept OEM and ODM.Q:What is the MOQ for each product?
A:For retail, we can do any quantity for you and they will be sent by express.For wholesale,the MOQ usually is 100pcs.
You can also mix different items and we can ship them by sea together.
For detail pls contact us by Email or online talking.
Q: Can you send samples before placing an official order?
A: Yes of course.Our sample is free but the express need bear by you.
Q: How long is the warranty period?
A: We offer different warranty periods for different products ranging from 2-5 years.Q: Could you send me sample before I place an order?
A: Yes, offer 1 pcs free samples for your evaluation, you provide the Courier account for freight collect.
