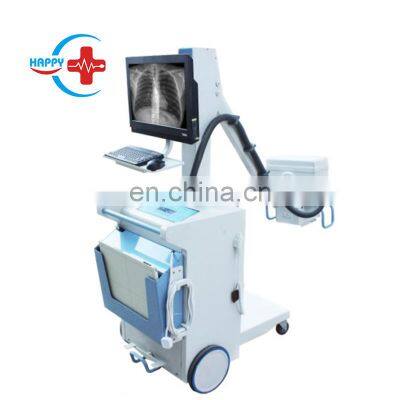

HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machine

Product Description

Product Description
HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machineSpecificationitemvaluePlace of OriginChinaBrand NameHappycareModel NumberHC-D023Power SourceElectricWarranty1 YearAfter-sale ServiceOnline technical supportMaterialAcrylic, Metal, Plastic, SteelShelf Life12 monthsQuality CertificationISO,CEInstrument classificationClass IISafety standardGB15979-2002Product nameX-ray MachineApplicationX-ray Room .Radiography Department ~Output Power5 KWInverter Frequency50KHZTube Voltage40-120KVAnode TypeAnode TypeDimensions120cm * 62cm * 130cmTube Current25mA-103mAFocal Point1.5mmNet Weight150kgProducts DescriptionOutput Power 5KWInverter Frequency 50KHZTube Voltage 40-120KVTube Current 25mA-103mAmAs 1.0-180mAs(46steps)Power Supply 220V±10%,50HZBattery:Battery can be taken 100 pcs imagesAnode Type Fixed AnodeFocal Point 1.5mmAnode Heat Capacity 35KJ(47KHU)Tube Heat Capacity 500KJ(666KHU)Dimensions 120cm * 62cm * 130cmNet Weight 150kgSID 500mm-1750mm"Horizontal Axis Rotation 180°Vertical Axis Rotation ‘-30 - +90°Beam Limiting Device Rotation 180°Stand Column Rotation NOSupporting Arm Two-arm SupportingPower Supply Mode Joint the Power LineOperating Mode Wire/Wireless controlOperation Panel Two-Button Type Portable flat panel detectorDetector:Amorphous silicon detectorscintillator:GOSView:14″×17″Pixel:2.3K*3KMax spatial resolution:3.4LP/MMPixel size:150umOutput gray-scale:16bitsDQE:66%Features1, the new appearance design, the small beautiful mobile is flexible and convenient, with the high frequency mobile X ray cameraall the features.2, the rocker arm adopts the self balance and single support patent technology, the outer shape is more concise and beautiful, andthe operation is easy to use.3. Using high frequency inverter technology, the ray quality is good, the skin dose is low, the stability is reliable, the imageclarity and contrast are good.4, using kV closed loop control technology, mAs digital closed loop control technology and microcomputer timely control to ensurethe accuracy and high repeatability of the dose.5, use kV and mAs to adjust photographic parameters, highlight blue screen LCD display, and have multiple protection functionssuch as tube voltage overvoltage, tube current overcurrent, output overload, X ray tube heat capacity and so on.6. has 50 filming program, the user can modify and save by itself.7. high quality combined X ray generator greatly reduces radiation and is safer for environmental protection and operators.8, with fault automatic protection device, fault alarm display.9. The system automatically saves the parameters after the power break, so as to ensure that the parameters are not lost.10. Using a rotatable beam limiter, the range and angle of the film can be adjusted freely, and the location of the film isconvenient and accurate.11, with high kilovolt photography function, a wide range of application, film effect is good.12, the use of hand control, remote double system photography, wireless exposure is not obstructed by obstacles, more convenientoperation.Optional1. Table for Mobile X ray Equipment(2000×700×500mm, cassette movement: 1680mm)2. Upright Bucky Stand. Standard Configuration:Combined X-ray generator and high frequency inverted power supplyNew main frame of Mobile X-ray systemX-ray equipment control systemRotatable adjustable collimatorRemote controlPortable flat panel detectorWorkstationDetails ImagesRecommend ProductsCompany ProfileFAQ1. How to place order of HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machine?A: Firstly we confirm product details and then send the Proforma Invoice,You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,after we confirm your payment then ship the product to you once finished production.2. For HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machine product, What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machine our MOQ:1pc,3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty.HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machine we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-D023 hospital medical equipments high frequency radiography system 5KW Mobile Digital X ray machine the delivery time is 10 working days .5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight.We have our own shipping company to provide best shipping cost and efficient way.
