Product Description
Product Description

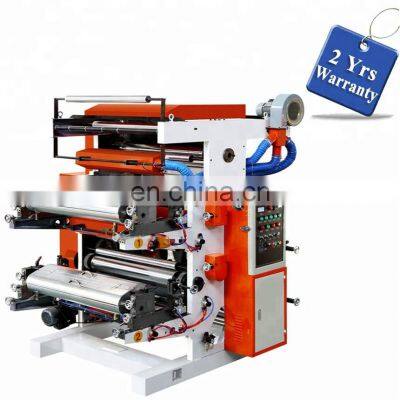

YT2600 Series two color plastic film Flexo Printer PP PE nonwoven bag flexographic printing machine
Videos
Video demonstration only for reference
Video: /watch?v=SAMIXeLSkdA
Product Description
This printer adopts photopolymer flexo plates to print variety of packing materials such as polyethylene (PE), polypropylene (PP), cellophane, nonwoven and paper etc. It is an important printer in the industry making paper bags, plastic shopping bags, and nonwoven bag etc.
Suitable Materials:
Papers: Kraft paper:40-350GSM single-sided coated paper:30-350GSM copy paper:15-350GSM firecrackers and paper:40-350GSM paper money and incense:25-350GSM silicone paper:50-350GSM coated paper:30-350GSM dust-free paper:25-350GSMRelease paper:40-350GSM composite paper:30-350GSM
Wovens: woven:15-120GSM Weave fabric:15-500GSM
Plastic Films: PVC:10-120GSM OPP:10-120GSM, PE :10-120GSM, PET: 10-120GSM, CPP:10-120GSM
Features:
1. Easy operation but high precision color registration.
2. The meter counter can set printing quantity according to the actul demands.
3. The printer will stop working automatically when reaches the quantity pre-set or when the material runs out.
4. Pneumatic printing roller lifting and lowering system.
5. Anilox cylinder equipped for even ink printing
6. Strong and reliable drying system coordinated with high-speed rotation which will automatically break circuit when the machine stops.
7. 360°continuous and adjustable longitudinal registration device.
8. Printing speed adjustable by the motor controlled by the frequency converter.
9. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate when the plate is installed.
10. Magnetic powder brake installed for unwinding tension control and magnetic powder clutch for rewinding tension control.
11. Double unwinding & rewinding shafts available (optional)
Parameters:
Model
| YT-2600
| YT-2800
| YT-21000
|
Max. Material Width
| 600mm
| 800mm
| 1000mm
|
Max. Print Width
| 560mm
| 760mm
| 960mm
|
Print Length
| 190-960mm
| 190-960mm
| 190-960mm
|
Max. Diameter of Roll Material
| 450mm
| 450mm
| 450mm
|
Printing Speed
| 5~50m/min
| 5~50m/min
| 5~50m/min
|
Plate Thickness (Including Two-sides Glue Paper)
| 2.38mm
| 2.38mm
| 2.38mm
|
Power
| 8Kw
| 10Kw
| 12Kw
|
Weight
| 1800KG
| 2000KG
| 2200KG
|
Dimensions
| 2.3*1.86*2.15m
| 2.3*2.06*2.15m
| 2.3*2.26*2.15m
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Pack & Ship
Wooden Case Loading and Transport
Certifications
Contact Us
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
WHATSAPP/MOBILE: +86-18258286679
EMAIL: UTECS @UTECSINTER.COM, UTECSINTER @GMAIL.COM
SKYPE: DANIELSUER
WEBSITE: WWW.UTECSINTER.COM
>>
