| US$15,750.00-16,000.00 | 1 Piece (MOQ) |
| Specifications | Unit | Parameter |

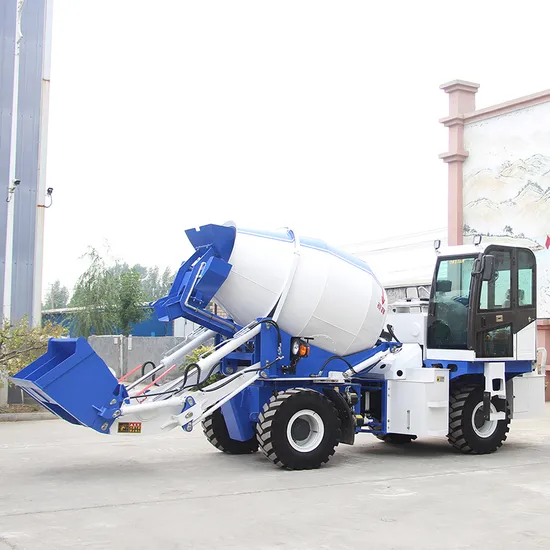

| Model | / | HWJB200 |
| Actual stirring capacity | m³ | 2.0 |
| Rotary drum capacity | m³ | 2.3 |
| Degree of bias | ° | 16 |
| Rotational speed | r/min | 10-20 |
| Direction of rotation | | Feed:clockwise output:counter clockwise |
| Mixing drum blade | | Two sets of spiral blades and four sets of auxiliary blades |
| Slump of concrete | mm | 70-260 |
| Hydraulic Power Transmission System | ||
| Pump model | | CBGV-4025 |
| Hydraulic motor model | | BMSS-250 |
| Reducer ratio | | 01:10 |
| Water Supply | ||
| Tank capacity/ water supply form | L | 540/ automatic timing water supply mechanism with automatic timing |
| The main performance parameters of the chassis and the main performance parameters of the engine | ||
| Engine type / displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| model | | Straight injection type four-stroke water-cooled supercharged diesel engine |
| Rated power | kw/r/min | 76KW/2400 |
| Max torque | N.m/r/min | 255/1500-1800 380/1500-1800 |
| Max running speed | km/h | 24 |
| Min steering radius | mm | 4250 |
| Climbing capacity | % | 26 |
| Tire | | 23.5/70-16 |
| Driving way | | 4×4 |
| Weight | kg | 4880 |
| Maximum load capacity | kg | 3000 |
| Whole machinery weight | kg | 6480 |
| Overall size(L*W*H) | mm | 6700*2300*2900 |
| The wheelbase | mm | 2250 |
| Bucket capacity | m³ | 0.45/0.55 |
