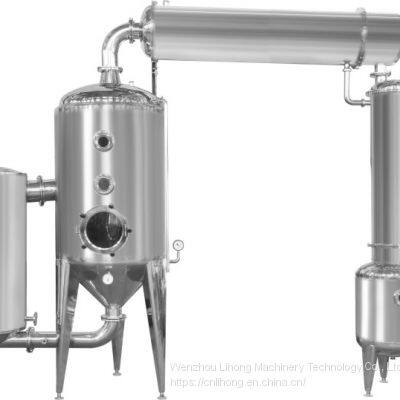

High Efficiency Single-Effect Circulation Enricher
Application:
Oral liquid, Herb, west drug, dextrose, amylum sugar, oral liquid, chemistry, foodstuff, monosodium glutamate and mil etc
Evaporation capacity: 0.5Ton~3Ton
Material: SUS304 or SUS316L
GMP standard
With steam heating jacket
Isolaiton: PU foam
Energy saving design
If need more information, contact us for them.
Technical Parameters:
Spec Model | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
| Distillation(kg/h) | 500 | 1000 | 1500 | 2000 |
| Steam PRE(MPa) | 0.09 | 0.09 | 0.09 | 0.09 |
| Vacuum(MPa) | -0.08 |
| 0.08 |
|
| Concentration proportion | 1.2-1.3 | 1.2 | 1.3 | 1.2 |
| Dimension | L | 2000 | 2200 | 2500 | 4600 |
| W | 1000 | 1200 | 1300 | 2350 |
| H | 3000 | 3300 | 3500 | 5100 |
| Type | Normal Pressure Vessel |
>>
