Whole Saler Manufacture of Sawdust Grinding Machine

Product Description

Whole Saler Manufacture Of Sawdust Grinding Machine Specification:

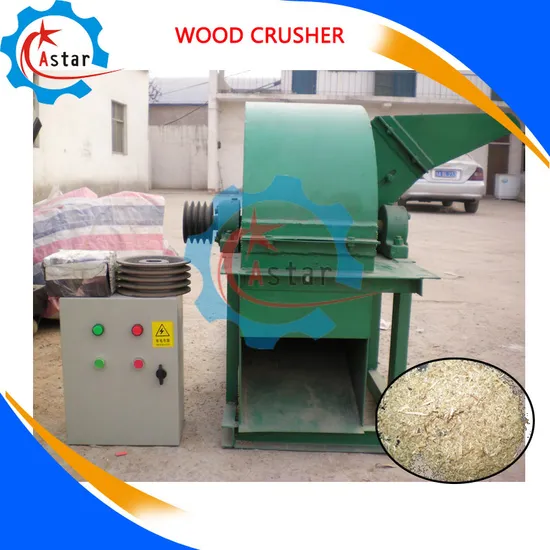

Wood Crusher Introduction:
The wood crusher is usually used for processing fiber materials such as pine, miscellaneous wood, poplar, fir, branches, thatch, straw and etc. It is widely applied in variety of industries including papermaking, high-density board, fiberboard, chipboard and wood particle board processing, edible fungi cultivation, wood pellet making, boilers and gas stoves combustion. Materials are cut by high speed rotating alloy steel blade, then enter the crushing chamber to be shred by special hammer and friction among materials. The sieve pores can be adjusted to get different particle sizes based on customers demands.
Wood Crusher Working Principle:
This wood crusher integrates crushing and grinding, adopting blade cutting and high-speed airflow impacting, and simultaneously complete micro material sorting process. During the blade working process, rotor produces high speed airflow, the material are accelerated in the airflow and impacted, thus completing the grinding process.
Whole Saler Manufacture Of Sawdust Grinding Machine Main Data:

Model/Specification	QX-500	QX-600	QX-700	QX-800	QX-900	QX-1000
Disc diameter mm	450	600	650	750	850	950
Cutters Qty	4	4	6	6	4-6	4-6
Cutters Length mm	100	150	200	230	260	300
Inlet hole size mm	180×200	200×200	200×250	250×300	300×400	400×500
Main shaft speed mim/h	2600	2500	2600	2300	2000	2000
Power kw	7.5	11	15	22	37	45
Capacity kg/h	200	500	700	900	1200	1500

Any more information you need Whole Saler Manufacture Of Sawdust Grinding Machine, please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906

---
