Tension Control System with Sensor for Printing Packaging and Printing Machine

Product Description

Product Description

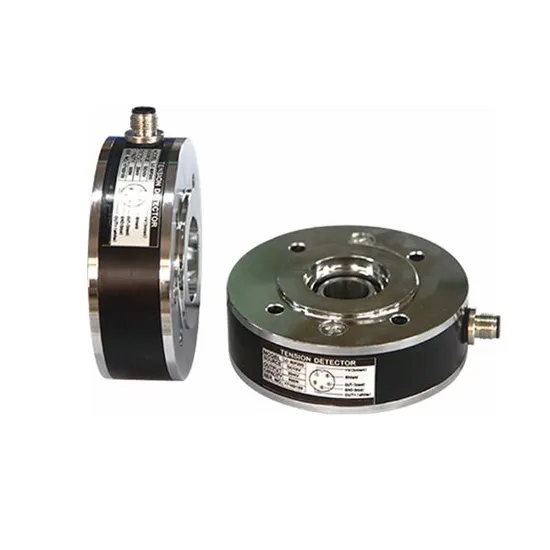

LC series hollow shaft auto tension detector
Compact, versatile and reliable, the hollow shaft auto tension detector LC offer an alternative to the others manufactured and are used for hollow shaft assembly application.
The LC hollow shaft auto tension detector measure the applied force and give an electric proportional signal, repeatable and free from hysteresys, which can be used for any kind of regulation.
LC hollow shaft auto tension detectors are the product of over 10+ years of experience gained in the field of tension regulation.
Hollow shaft auto tension detector LC series feature:
1.Low hysteresis
2.Temperature compensation
3.Full-bridge strain n resistance
4.Excellent linearity and stability
5.Apply to idler roller and live round roller detecting
6.With maximum overloading to 500% of rated loading

Load cell parameter:
Excitation voltage	10V DC
Output voltage	2mv/V(Factory setting)
Strain resistance value	350Ω
Strain resistance type	Full-bridge
Max. output signal	150% TYP
Synthetic error	<0.5%
Max. overloading capacity	500% rated loading
Detecting type	Full-bridge

Installation:
Product Application * Printing systems: conveyors and in-feeders
*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
Order Details

Item Name	LC Through-Hole Tension Detector
MOQ(Minimum Order Quantity)	1Pc
Lead time	3-5 days after receiving the deposit
Calculated Packing Size	20cm*10cm*10cm, 4kg/Pc
Package	Carton
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China

---
