Furnace Conveyor Mesh Belt for Heat Treatment Industry, High Temperature

Product Description

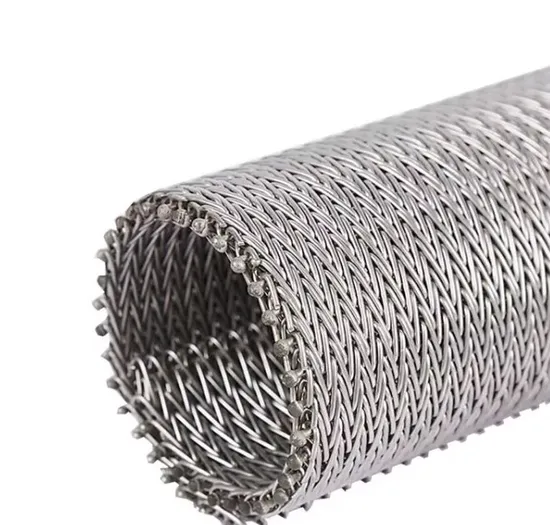

Stainless Steel Compound mesh belt

The left-wound and right-wound spirals are fitted tightly together alternately and joined with
straight rods. A4 uses 4 rods for one spiral to joint.

Specification	Type YF-A4
Material	Stainless steel 304, 316
Width	Customized
Length	As customer's requirements
Dimensions	datas: spiral pitch, rod pitch, rod diameter, spiral diameter,all required by customers

Belt Advantages
a.Since the surface is flat and smooth, the belts can carry small items and unstable products.
b.The allowable tension is high, so that heavy load can be transported.
c.The belt strength against pressure is high, so the belt can be used for processing under pressure.
d.The belt can be used at high temperature.
e.The belt can be used for textile products refining and cleaning process.

Product Applications(Perfect for heavy loads or use in ovens and small parts processing)
a. Tunnel Oven Belts
b. Annealing Oven Conveyor Belts
c. Glass and Ceramics Oven Belts
d. Metal Parts Conditioning and Annealing Belts
e. Small Parts Processing BeltsStainless Steel Compound Balanced Weave Belt Type A4

The left-wound and right-wound spirals are fitted tightly together alternately and joined with
straight rods. A4 uses 4 rods for one spiral to joint.

Specification	Type YF-A4
Material	Stainless steel 304, 316
Width	Customized
Length	As customer's requirements
Dimensions	datas: spiral pitch, rod pitch, rod diameter, spiral diameter,all required by customers

Belt Advantages
a.Since the surface is flat and smooth, the belts can carry small items and unstable products.
b.The allowable tension is high, so that heavy load can be transported.
c.The belt strength against pressure is high, so the belt can be used for processing under pressure.
d.The belt can be used at high temperature.
e.The belt can be used for textile products refining and cleaning process.

Product Applications(Perfect for heavy loads or use in ovens and small parts processing)
a. Tunnel Oven Belts
b. Annealing Oven Conveyor Belts
c. Glass and Ceramics Oven Belts
d. Metal Parts Conditioning and Annealing Belts
e. Small Parts Processing Belts

size	material	mesh size	wire(mm)
length20m xwid580/780mm	stainless	15*32.4	2.4*3.2
length20m xwid380/410/980mm	stainless	15*32.4	2.4*3.2
length20m xwidth580/780mm	stainless	9.4*20.8	1.6*2
length20m x380/410/980	stainless	9.4*20.8	1.6*2

---
