Heating Cooling Batch Mixer for PVC Extruder

Product Description

Product Description
Kenneth Heating Cooling Mixer is one of the mixing equipment mainly used for fast blending of plastic and polymer mixture composites: PVC dry blend, powder coatings, color masterbatch, pigments, thermoplastic rubbers, wood plastic composites(WPC), stone plastic composites(SPC) etc.

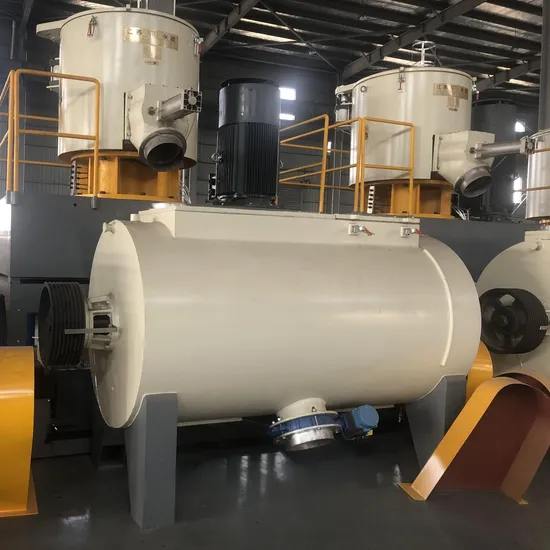

Detailed Photos

Product Parameters

Hot Mixer
Total Volume	1000L
Effective Volume	700L
Batch Weight	350~380kg/batch
Mixing Time	8~12min
Throughput(PVC)	1800kg/hr (Varies as per processing and formula)
Heating Method	Self-friction(optional with external heating)
Measure of Temperature	Thermocouple
Material of Mixing Tool	Stainless steel, SS304
Configuration of Mixing Tool	3-layer design
Rotation Speed of Mixing Tool	0~560RPM
Material of Main Shaft	40CrHRC28-32
Sealing Method	Quadruple framework sealing configuration
Lubrication Method	Grease
Lid Open	Air cylinder
Lid Close	Clip
Lid Protection	Limit switch
Lid Material	Cast aluminum
Inner Wall Layer of Pot	Stainless steel, SS304, thickness 6mm
Inner Bottom Layer of Pot	Stainless steel, SS304, thickness 8mm
Outer Layer of Pot	Carbon steel, thickness 5mm
Pot Jacket	Filled with insulation cotton(optional with oil circulation)
Discharge Outlet	Equipped with jet cleaner and flow back nozzle
Motor Power	160kW
Speed Control	Inverter, ABB
Cold Mixer
Total Volume	3000L
Effective Volume	2000L
Cooling Method	Cold water circulation
Measure of Temperature	Thermocouple
Material of Mixing Tool	Stainless steel, SS304
Rotation Speed of Mixing Tool	80RPM
Configuration of Mixing Tool	1-layer design
Material of Main Shaft	40CrHRC28-32
Sealing Method	Quadruple framework sealing configuration
Lubrication Method	Grease
Lid Open	Air cylinder
Lid Close	Clip
Lid Protection	Limit switch
Lid Material	Cast aluminum
Inner Wall Layer of Pot	Stainless steel, SS304, thickness 6mm
Inner Bottom Layer of Pot	Stainless steel, SS304, thickness 8mm
Outer Layer of Pot	Carbon steel, thickness 5mm
Pot Jacket	Water circulation
Discharge Outlet	Equipped with jet cleaner and flow back nozzle
Motor Power	37kW
Electrical&Control Component
Power Supply	380V, 50Hz or custom
Control	Electrical control cabinet
Motor	SIMA(top Chinese brand)
Inverter	ABB
Temperature Meter	OMRON
Other Main Component	Siemens

Installation Instructions
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
Our Advantages
1.Reliable
Most popular design with years' verification.
Mature supply chain for raw materials with strict quality assurance.
International famous brands of key parts i.e. ABB invertor, Siemens electronics, Siemens motor, Mettler Toledo scale etc.
2. Economy
European technology commercialized in China.
High efficiency mixing performance.
Cost effective solutions.
3 . Professional
Over 200 mixing dosing feeding projects for bulk materials erected and running well.
Top engineers of China with over 25 years' experience of mixing dosing feeding technologies for bulk materials.
Custom proposal for each client as per specific requirements.
After Sales Service
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and Kenneth service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says, Kenneth always stands at customer's point to offer the optimum solution and help customer to maximize profit. Kenneth has its own customer management system and spare parts management system which ensure quickest responds and enough regular SKUs for easy-wearing parts whenever customer requests.
FAQ
Why the mixer is tagged with "high speed" and "turbo"?
Vertical arranged special shape designed mixing tools with a high rotation speed(peripheral speed 20-50m/s) lead to a "turbo" flowing of mixtures. The high speed intensive motion causes massive friction among mixtures which leads to "heating" effect to mixture. The accompanied temperature raise creates perfect compounding condition for additives e.g. plasticizer, stabilizer, lube, etc at different temperature range while mixing is ongoing. High speed turbo mixer is the ideal mixing machine perfect match to polymer compounding processing requirements.

---
