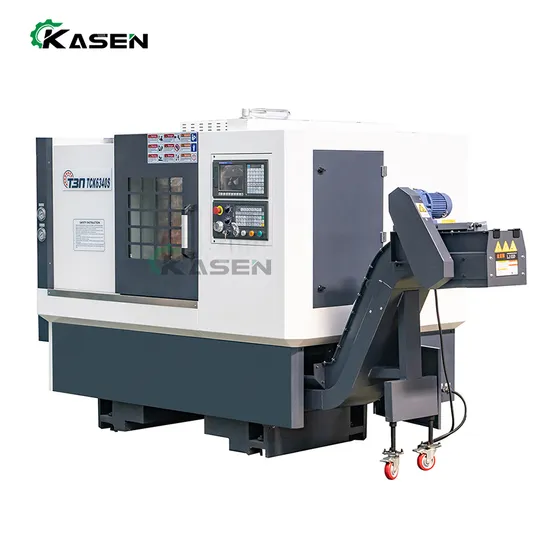

Taiwan Quality Tck6340 Linear Guide Slant Bed CNC Lathe Machine

Product Description

Taiwan Quality Tck6340 Linear Guide Slant Bed Cnc Lathe Machine
Product Description
Features:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the interna and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.One-piece bed adopts high strength iron to ensure rigidity and precision Slant bed design and linear guideways enqure process speed and accuracy Carriage and guide-way contact surface use Turcite B to maintain accuracy.
Product Parameters

SPECIFICATIONS	Units	TCK6340	TCK6340S	TCK6350
Swing over bed	mm	400	400	500
Swing over cross slide	mm	140	140	220
Distance between centers	mm	200	500	410
Spindle bore	mm	48	56	66
Spindle nose type	-	A2-5	A2-5	A2-6
Spindle speed steps	-	Stepless	Stepless	Stepless
Spindle speed range	rpm	3500	3500	3000
Turret/tool post	-	Gang type	Gang type	Gang type
Tool size	mm	20 x 20	20x 20	25 x 25
X axis travel	mm	400	400	500
Z axis travel	mm	300	500	410
X axis rapid traverse	mm/min	18000	18000	18000
Z axis rapid traverse	mm/min	18000	18000	18000
Main spindle motor	kw	5.5	5.5	7.5
Guide rail type	-	Linear rail	Linear rail	Linear rail
Machine weight	kg	2300	2500	2900
Overall dimension	mm	2200x1600x1780	2400x1600x1780	2500x1600x1890

Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian

---
