Plastic Film Cleaning Machine for High Efficiency in Waste Processing

Product Description

Applicable Material:
PE/PP bottles, Drums, Lumps, Pipes, Baskets, Crates, Household bottles, Plates, and more.
Introduction
Zhangjiagang City Yili Technology Co., Ltd. proudly presents its sophisticated waste hard plastic recycling and washing line. This state-of-the-art line excels in processing a diverse range of hard plastics including PE/PP bottles, IBC tanks, pipes, lumps, flakes, jugs, blocks, and die head materials. The comprehensive production line features a shredder, crusher, frication washer, floating tank, and centrifugal dryer with a remarkable capacity ranging from 300 to 5000 kg/hr. Our line guarantees meticulous and proficient decontamination of waste plastics utilizing both cold and hot washing systems, integrated with cutting-edge recycling technologies. Post-washing, the products achieve superior quality, perfect for standalone use or blending with other materials for reprocessing.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
HQX500	500	160	0.5	3
HQX1000	1000	220	1.2	3
HQX2000	2000	350	3	4
HQX3000	3000	410	4	4
HQX5000	5000	500	5	6

Tech Features & Advantages
Our production line is fully automated, ensuring a seamless process, exceptional production efficiency, and outstanding cleanliness.; Effortlessly separates mud, sands, and other impurities from films and bags.; With its advanced pre-treatment system, including a pre-washer and label processing, it significantly enhances the end product's quality.; Equipped with a high-capacity dewatering machine capable of processing up to 5000 kg per hour. The floating tank boasts a unique design ensuring not only optimal cleanliness of washed material but also the effortless discharge of dirty dust through manual or pneumatic valves.; Features easy maintenance, low energy consumption, and a long operational lifespan.
Main Machines For the Line
Belt Conveyor
Our belt conveyors, available in both light and heavy-duty options, employ a gearbox motor and are equipped with sidewalls to prevent material spillage. For enhanced safety and efficiency, a metal detector can be installed on the belt conveyor.
Shredder Ideal for large plastic materials such as big drums, tanks, lumps, and die head material, our shredders perform initial grinding. The shredded material is then processed by a secondary crusher for finer crushing, yielding material sizes under 12mm for superior cleaning. YILI offers a series of shredders with varying capacities and functionalities to suit customer requirements.
Crusher
The crusher reduces material to smaller sizes while simultaneously cleaning it with water and cooling the blades during the process. This transformation enhances the washing results and facilitates easy packaging of the final product.
Frication Washer Engineered for high-speed washing, the frication washer efficiently removes contaminants, dirt, and grease from materials using water. Following the frication washer, materials proceed to the floating tank for further cleansing.
Floating Tank
This module adeptly separates sediment and metal from materials. With various washing wheel designs and inverter-controlled speeds, it ensures effective cleaning. The bottom features a magnetic valve for prompt dirt discharge, made from durable stainless steel.

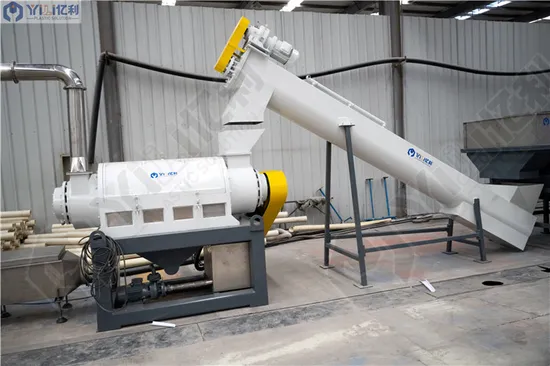

Centrifugal Dryer Our horizontal centrifugal dryer offers exceptional drying performance for plastic flakes with minimal energy use. Its self-cleaning grid mesh, timed for efficiency, provides simultaneous washing and drying capabilities.
Hot Air Pipeline Heating
Constructed from stainless steel, the pipeline channels hot air to further dry materials, effectively reducing internal moisture content.

---
