Factory Sale High Precision Multicut CNC EDM Wire Cutting Machine

Product Description

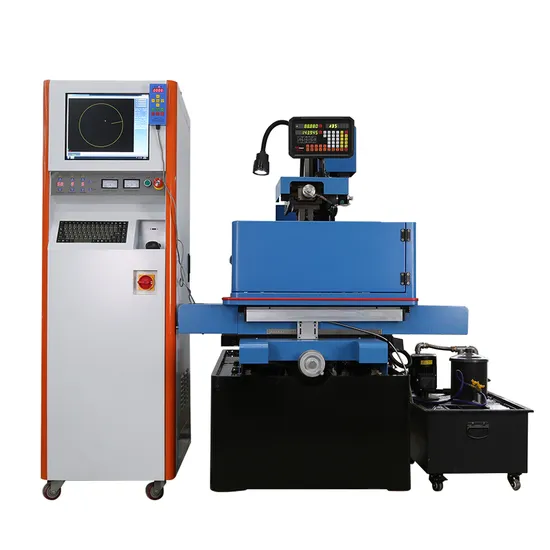

The WEDM is composed of main machine, electrical control system, software and cooling filter system. The main machine is mainly composed of fuselage, column, wire frame, workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has five axes of X, Y, U, V and Z, among which the four axes of X, Y, U and V are linked and driven by step without resistance and constant current. The vertical cabinet dqe-ds-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen. Long term normal working conditions of the machine.

Product Data of High Speed Wire Cutting
Model	Worktable size (mm)	Workable travel (mm)	Max.cutting thickness (mm)	Max.machining taper (mm)	Max load (kg)	Host weight (kg)	Dimension (L*W*H)
DK7720	420*270	200*250	300	0°	100	900	1500*1000*1700
DK7725	520*280	250*350	300	0°	150	1200	1500*1050*1800
DK7735	630*380	350*450	400	6°~45°/80mm	250	1400	1700*1130*1800
DK7745	850*580	450*550	450	6°~45°/80mm	450	1700	1900*1300*1800
DK7750	960*680	500*630	500	6°~45°/80mm	500	2300	2100*1550*2000
DK7763	1170*780	630*800	600	6°~45°/80mm	950	2800	2250*1800*2300
DK7780	1350*980	800*1000	800	6°~45°/80mm	1000	5000	2400*2100*2300
DK77100	1600*1150	1000*1200	1000	6°~45°/80mm	1100	6000	2500*2300*2500
DK77120	1900*1500	1200*1400	1000	6°~45°/80mm	1800	7500	3800*3800*2700

S/N	Project	Parameter
1	Model No.	DK7745
2	Electrical cabinet form	Vertical cabinet (full step type)
3	Guide	Steel rail
4	Lead screw form	Ball screw
5	Xyuv motion motor form	Reactive stepping motor
6	Working mode of wire conveying motor	Frequency converter speed regulation1~12m/s
7	Machine tool protection	Environmental protection cover
8	Resolution of motion axis	0.001mm
9	Table size	850x580mm
10	X, Y axis stroke	450x550mm
11	U, V axis travel	±30×±30mm
12	Machining taper / machining thickness	6°~45°/80mm
13	Maximum straight cutting thickness	450mm(Z-axis manual lifting)
14	Control mode	4 axis linkage
15	Maximum load capacity	300kg
16	Maximum processing current	4.5-5A
17	Maximum machining efficiency Cr12,H=60mm	≥180 mm²/m,Aluminum cutting≥220 mm²/m
18	Surface roughness(Straight line cutting, H≤40mm)	Ra≤2.0μm
19	Cutting accuracyCr12,H=40mm	≤0.01mm
20	Radial runout of wire storage cylinder	≤0.02mm
21	Molybdenum wire diameter range	0.12~0.22mm
22	Wire storage capacity of wire storage cylinder	250m
23	Loss of molybdenum wireCr12,H=40mm	≤0.02mm/300000mm²
24	Cutting power supply	High frequency power supply system without resistance
25	Operating system	Windows XP
26	Control system	AUTOCUT
27	Communication interface	LAN,RS232,USB
28	Operation function	Drawing or CAD (DXF) drawing import
29	Volume of working tank	55L, can be 90L
30	Working fluid filtration mode	Filter screen filtration
31	Weight of whole machine	1500kg
32	Overall dimension of main engine	1900x1300x1800mm
33	Cabinet size	730×630×1820mm
34	Rated power of electric appliance	≤ 2.7 kW

About us
Suzhou Longkai Electromechanical Technology Co., Ltd. was established in May 2008. It is a modern enterprise specializing in CNC equipment development, production, sales and industrial automation. Its main products are vertical processing center, CNC drilling and milling machine, CNC lathe, fast wire cutting, mid-wire cutting, turret milling machine, precision grinder, CNC drilling, EDM drilling and other mechanical processing equipment. In order to develop the domestic and foreign markets, Longkai Technology upholds the business philosophy of stable product performance and excellent quality, and invites agents and franchisees. Provide customers with the best value products and the most thoughtful service is the management philosophy of Longkai. Join Longkai. Create the future! Our Services 1. Your inquiry and email will be replied within 24hours. If you need to develop products with your own specification, we can help you to work it out.
2. Welcome to be our distributors in your country, we can cooperate with each other to do better business.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service! FAQ 1. Payment Method:
30% ~ 50% or 100% deposit T/T in advance(negotiate)
2. Delivery Time:
15-20 working days after payment
3. MOQ:
1 set machine
If you need machine with your own specification, logo, packing, etc, please negotiate with us to customize.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS ing EDM parameter

---
